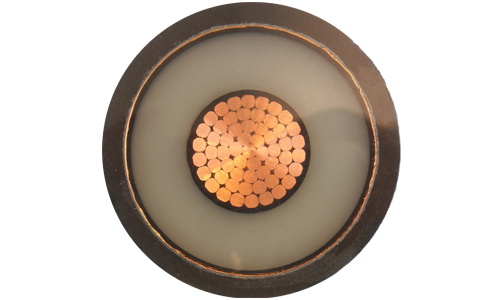

1-35KV XLPE Power Cable
内容介绍
Type and Decription
|
Type |
Description |
Application |
|
YJV |
Copper(aluminum)conductor,XLPE insulated and PVC sheathed cable |
For laying indoors,in tunnel or pipe,unable to bear external mechanical force |
|
YJY |
Copper(aluminum)conductor,XLPE insulated and PE sheathed cable |
|
|
YJV22 |
Copper(aluminum)conductor,XLPE insulated,steel tape armored and PVC sheathed cable |
For laying indoors,in tunnel,cable trench,or direct in ground,can bear external mechanical force ,while unable to bear large tension |
|
YJV23 |
Copper(aluminum)conductor,XLPE insulated,steel tape armored and PE sheathed cable |
|
|
YJV32 |
Copper(aluminum)conductor,XLPEinsulated,thin(thick) steel wire armored and PVC sheathed cable |
For laying in high drop area ,can bear external mechanical force and certain tension |
|
YJV33 |
Copper(aluminum)conductor,XLPE insulated,thin（thick） steel wire armored and PE sheathed cable |
|
|
Notes: We can also produce non-magnetic steel tape and metal wire armored cable |
||
Standard of Product
The product is manufactured according to the standard of GB/T12706-2002.At the same time ,it can also be manufactured according to IEC, BS, DIN and AEIC upon request.
Application
The product is suitable for power transmission and distribution lines with rated power frequency voltage 3.6/6kV～26/35kV.
Operating Characteristic
Power frequency rated voltage Uo/U: 3.6/6kV～26/35kV
Max. permissible continuous operating temperature of the conductor: 90℃.
Max. temperature of conductor during short-circuit (5s maximum duration) shall not exceed 250℃.
The ambient temperature under installation should not below 0℃.
The bending radius of a single-core cable: not less than 20 times of cable’s OD
The bending radius of a multi-core cable: not less than 15 times of cable’s.OD
The installation operating condition of cable
Max. permissable continuous operating temperature of the conductor: 90℃.
Ambient air temperature: 40℃.
Soil temperature: 25℃.
Thermal resistivity of soil: 1.0k.m/w.
Depth of laying: 0.7m.
Only consider a loop
If the single-core cable is paralleled laid, adjacent space is equivalent to cable’s OD..
Correction factor of current rating under different soil temperature
|
Operating Temperature of Conductor |
Ambient Temperature in Soil ℃ |
|||||
|
10 |
15 |
20 |
25 |
30 |
35 |
|
|
Correction Factor of Current Rating |
||||||
|
90℃ |
1.11 |
1.07 |
1.04 |
1.00 |
0.96 |
0.92 |
Correction factor of current rating under different soil thermal resistivity
|
Operating Temperature of Conductor |
Rated Voltage （KV） |
Soil Thermal Resistivity（k.m/w） |
|||
|
0.8 |
1.0 |
1.2 |
1.5 |
||
|
Correction Factor of Current Rating |
|||||
|
90℃ |
0.6/1-6/6 |
1.08 |
1.0 |
0.95 |
0.77 |
|
6/10-12/15 |
1.06 |
1.0 |
0.94 |
0.78 |
|
|
12/20-26/35 |
1.06 |
1.0 |
0.94 |
0.80 |
|
Correction factor of current rating under different air temperature
|
Operating Temperature of Conductor |
Ambient Temperature in Air℃ |
|||||||
|
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
|
|
Correction Factor of Current Rating |
||||||||
|
90℃ |
1.23 |
1.17 |
1.12 |
1.06 |
1.00 |
0.94 |
0.87 |
0.81 |
