Index>Aerial Insulated Cable >Parallel multiple insulated overhead cable with rated voltage up to and including 1kV


内容介绍


cable introduction


A

Application
  The cables are designed for aerial power lines and room-entrance wires with Uo/U up to and including 0.6/1kV

B

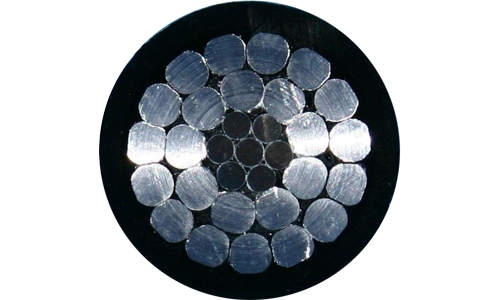

Product image

C

Operating Characteristcs

  • Rated coltage Uo/U is 0.6/1kV.

  • Max.Continuous permissive working temperature of conductor;PVC insulation should be not
    more than 70℃ and XPLE insulation should be not less than 90℃.

  • The installation temperature of cable should be not less than -5℃.



  • Permissive benging radius of cable should be not less than 20Dmm.

D

Standard & description


TYPE

Description
 Main Application
BS#-JKV-0.6/1
Copper core PVC insulated parallel multiple overhead cable with rated voltage equal to 0.6/kV

For fixed aerial installation,Room-entrance wire,etc.

BS#-JKLV-0.6/1
Alluminum core PVC insulated parallel multiple overhead cable with rated voltage equal to 0.6/kV
BS#-JKY-0.6/1
Copper core PE insulated parallel multiple overhead cable with rated voltage equal to 0.6/kV
BS#-JKLY-0.6/1
Alluminum core PE insulated parallel multiple overhead cable with rated voltage equal to0.6/kV
BS#-JKYJ-0.6/1
Copper core XLPE insulated parallel multiple overhead cable with rated voltage equal to 0.6/kV
BS#-JKLYJ-0.6/1
Alluminum core XLPE insulated parallel multiple overhead cable with rated voltage equal to 0.6/kV
# mean Cable cores construction (shape)type.see B.Product Image
