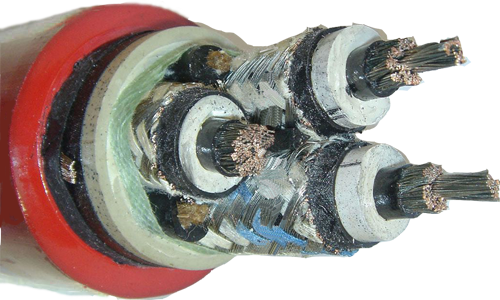

Flexible Rubber-sheathed Cable for Mining Purposes

Index>Mine Cable,mining cable>Flexible Rubber-sheathed Cable for Mining Purposes

Types and Description

TYPES	Designation
U UY MY	flexible cable for movable mining purposes
UP UYP MYP	NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible screened cable for movable mining purposes
UC MC	NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible coal cutter cable
UCP MCP UCPQ	NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible coal cutter screened cable
UZ UZP MZ MZP	NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed drill cable for mining purpose
UYQ MYQ	NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible light –duty cable for mining purpose

Production Range

Type	Rated Voltage	Num of cores			Nom. Cross-section Mm2
Type	Rated Voltage	Principal Line	Ground Line	Controll Line	Nom. Cross-section Mm2
U UP	1000	3	1	1	2.5-70
UY MY	380/660	3	1	-	4-70
UYP MYP	380/660	3	1	-	4-70
UYP MYP	660/1140	3	1	-	4-70
UC	1000	3	1	2-7	10-50
UC MC	380/660	3	1	3-7	16-50
UCP	1000	3	1	2-7	10-50
UCP MCP	380/660	3	1	3-7	16-50
UCPQ	1140	3	1	3	35-70
UCP MCP	660/1140	3	1	3	35-95
UZ UZP MZ MZP	300/500	3	1	1	2.5-4
UYQ MYQ	300/500	2-12	-	-	1.0-2.5

Standard of Product
The U-type cables are manufactured according to the standard of GB 12972-2008,while M –type cables are manufactured according to MT818-1999 and Q/1320282DCE037-2003, at the same time, they are also can be manufactured according to the standard of IEC, BS, DIN and AEIC.
Applications
Flexible rubber-sheathed cables for mining purposes AC rated voltage up to and including 6/10KV are suitable for mining purposes power device with moring installation.

Operating Characteristics
Rated voltage Uo/U: 380/660V 300/500V、660/1140V、1.9/3.3KV、3.6/6KV and 6/10KV.
Max. permissible operating temperature of the conductor: 65℃.
Min. permissible operating temperature of the conductor: -35℃.
The bending radius of cable should not be less than 6 times of the cable’s OD
