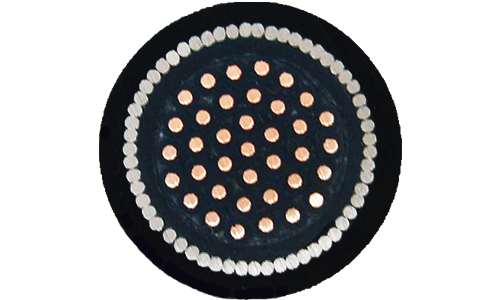

PVC Insulated Control Cable

Index> Control Cable >PVC Insulated Control Cable

Type and Description

Type	Description


KVV	PVC insulated ,PVC sheathed control cable
KVVP	PVC insulated ,PVC sheathed braided-shielding control cable
KVVP2	PVC insulated ,PVC sheathed copper tape shielding control cable
KVVP3	PVC insulated ,PVC sheathed composited aluminum-plastic tape shielding control cable
KVV22	PVC insulated ,PVC sheathed steel tape armored control cable
KVV32	PVC insulated ,PVC sheathed cooper thin steel wire armored control cable
KVVR	PVC insulated ,PVC sheathed control flexible cable
KVVRP	PVC insulated ,PVC sheathed shielded flexible control cable
KVVP-22	PVC insulated ,copper wire braided shielding PVC sheathed steel tape armored control cable
KVVP2-22	PVC insulated ,copper tape shielding, PVC sheathed ,steel tape armored control cable

Standard of product
The product is manufactured according to GB/T9330-2008 standard.At the same time, it can also be manufactured according to IEC, BS ,DIN and AEIC standard upon request.
Application
The PVC insulated PVC sheathed control cable is suitable for patching of control,signal protected and measures systems with rated voltage up to and including 450/750V.
Operating Characteristics
Rated power-frequency rated voltage U0/U is 450/750V
Max. permissable continuous operating temperature of conductor is 70℃
The ambient temperature under installation should not be lower than 0℃,if the ambient temperature is below 0℃,the cable should be preheated.
The permissable bending radius of cable is recommeded as follows:
Un-armored cable: should be not less than 6 times of cable’s OD
Armored or tape screen cable: should be not less than 12 times of cable’s OD
Screen flexible cable: should be not
less than 6 times of cable’s OD.

Product Scope

type	Rated voltage	Nomial cross sectional area(mm2 )
		0.5	0.75	1		1.5	2.5	4	6	10
		Number of cores
KVV	450/750V		2-61					2-14		2-10
KVVP			2-61					2-14		2-10
KVVP2 KVVP3			4-61					4-14		4-10
KVV22			7-61			4-61	4-61	4-14		4-10
KVV32			19-61			7-61	7-61	4-14		4-10
KVVR		2-61
KVVRP		2-61					2-48
KVVP-22			7-61		4-61			4-14		4-10
KVVP2-22			7-61		4-61			4-14		4-10

Control Cable Structure Size
& Main technical Property
KVV model 450/750 Voltage Copper Conductor PolyvinylChloride (PVC) Insulation PolyvinylChloride (PVC) sheath

Core NO. X nominal cross section mm2	Strands/Dia. mm	Insulation Thickness mm	Sheath Thickness mm	Average Overall Diameter		Max. DC resistance at 20 ℃ Ω/km	Min. Insulation resistance at 70 ℃ MΩ·km	Cable Weight kg/km
Core NO. X nominal cross section mm2	Strands/Dia. mm	Insulation Thickness mm	Sheath Thickness mm	min.	max.	Max. DC resistance at 20 ℃ Ω/km	Min. Insulation resistance at 70 ℃ MΩ·km	Cable Weight kg/km
2×0.75	1/0.97	0.6	1.2	6.7	8.1	24.5	0.012	57.1
2×0.75(B)	7/0.37	0.6	1.2	6.9	8.4	24.5	0.014	67.8
2×1	1/1.13	0.6	1.2	7.0	8.5	18.1	0.011	64.4
2×1(B)	7/0.43	0.6	1.2	7.2	8.7	18.1	0.013	69.8
2×1.5	1/1.38	0.7	1.2	7.9	9.5	12.1	0.011	88.4
2×1.5(B)	7/0.52	0.7	1.2	8.1	9.7	12.1	0.010	94.5
2×2.5	1/1.78	0.8	1.2	9.0	10.9	7.41	0.010	125.4
2×2.5(B)	7/0.68	0.8	1.2	9.2	11.1	7.41	0.009	131.2
2×4	1/2.25	0.8	1.2	9.9	11.9	4.61	0.0085	164.7
2×4(B)	7/0.85	0.8	1.2	10.2	12.3	4.61	0.0077	170.7
2×6	1/2.76	0.8	1.2	10.8	13.1	3.08	0.0070	223.6
2×6(B)	7/1.04	0.8	1.2	11.2	13.6	3.08	0.0065	229.8
2×10	7/1.35	1.0	1.2	14.3	17.3	1.83	0.0065	384.0
3×0.75	1/0.97	0.6	1.2	7.1	8.5	24.5	0.012	70.7
3×0.75(B)	7/0.37	0.6	1.2	7.3	8.8	24.5	0.014	76.6
3×1	1/1.13	0.6	1.2	7.4	8.9	18.1	0.011	80.8
3×1(B)	7/0.43	0.6	1.2	7.6	9.1	18.1	0.013	87.9
3×1.5	1/1.38	0.7	1.2	8.3	10.0	12.1	0.011	106.4
3×1.5(B)	7/0.52	0.7	1.2	8.5	10.3	12.1	0.010	113.5
3×2.5	1/1.78	0.8	1.2	9.5	11.5	7.41	0.010	150.3
3×2.5(B)	7/0.68	0.8	1.2	9.7	11.8	7.41	0.009	159.3
3×4	1/2.25	0.8	1.2	10.5	12.7	4.61	0.0085	213.4
3×4(B)	7/0.85	0.8	1.2	10.8	13.0	4.61	0.0077	228.5
3×6	1/2.76	0.8	1.2	11.5	13.9	3.08	0.0070	306.0
3×6(B)	7/1.04	0.8	1.2	11.9	14.4	3.08	0.0065	312.2

For More information,please contact us.
