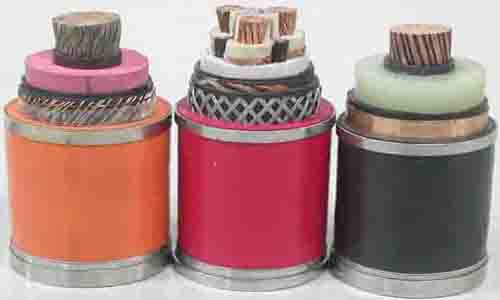

XLPE Insulated Flame-retardant Cable for Coal Mine Application up to and Including10KV

Index>Mine Cable,mining cable>XLPE Insulated Flame-retardant Cable for Coal Mine Application up to and Including10KV

Type and Description

Type	Description
MYJV	XLPE insulated PVC sheathed power cable for coal application
MYJV22	XLPE insulated PVC sheathed steel tape armored power cable for coal application
MYJV32	XLPE insulated PVC sheathed thin steel wire armored power cable for coal application
MYJV42	XLPE insulated PVC sheathed thick steel wire armored power cable for coal application

Standard of Product
The product is manufactured according to the standard of MT818.13-1999 “Copper core fixed installation flame retardant power cable of rated voltage 10KV or lower for coal mine application-part 3 XLPE insulation power cable for coal mine application” . At the same time, the product can also be manufactured according to the IEC,BS,DIN,AEIC and JIS upon request.

Application
The product is suitable for transmission and distribution lines under coal mine with rated voltage up to and including 10KV.

Operating Characteristics
Max permissible continuous working temperature of conductor is 90℃.
Max. temperature of conductor during short circuit(5 seconds maximum duration) should not exceed 250℃.
The ambient temperature under installation should not below 0℃
