Usage
It is used among all kinds of movable electrical equipments and tools in
petroleum ,chemistry,powergenerating and metallurgy industries under high,low
temp and acid alkali ,oil, water and corrosive circumstance at rated voltage up
to 0.6/1kv
Operating Characteristics:
1.1 The ambient temperature : -60 deg.~+180
deg.
1.2 the operating temperature should not be higher than +180deg.
1.3
The ambient temperature under installation , should not be below -25 deg.
1.4
mini bending radius: non-armoured cable≥10 times of the cable diameter
1.5
Rated voltage U0/U 450/750V 0.6/1KV
Types and Description
|
TYPES
|
Name
|
Main Usage
|
Specification (core)
|
ominal Cross Section(mm2)
|

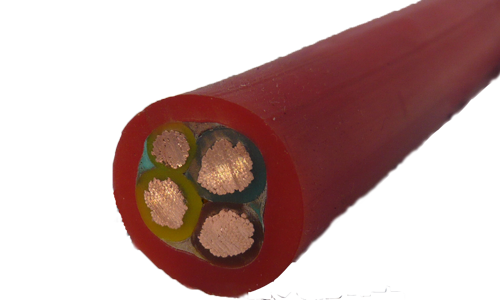

YGZ-450/750
|
Medium-sized silicon rubber insulated heat
resistant ,corrosion resistant,oil resistant flexible cable
|
Used among all kinds of movable electric
equipment and tools with high temperature
|
2,3,4,5,7,
10,12,19,24,30,
37,44,48,54,61
|
0.75~2.5
|
YGVFZ-450/750
|
Medium-sized silicon rubber insulated
NBR sheathed heat resistant ,corrosion resistant,oil resistant flexible
cable
|
YGC-600/1000
|
Heavy-duty silicon rubber insulated heat
resistant ,corrosion resistant,oil resistant flexible cable
|
Used among all kinds of movable
electric equipment and tools with high temperature，，able to bear larger enternal
mechanical force
|
2,3,4,5
|
4~240
|
YGVFC-600/1000
|
Heavy-duty silicon rubber insulated
NBR sheath ,heat resistant ,corrosion resistant,oil resistant flexible
cable
|
YFGC-600/1000
|
Heavy-duty F46 fluorine insulated silicon rubber sheath ,heat resistant ,corrosion
resistant,oil resistant flexible cable
|
*flame retardant & fire
resistant test execute GB12666-90 standards
We also supply following silicon cable
Silicon rubber insulated leading wire
Executive standard Q/LB
005.8-2006
This wire is suitable for use for rated voltage up to and
including 1140V,6000V,10000V,as leading to F grade ,H grade electric motor and
appliance. Using feature:
The operating temperature are -60 ~180 deg..
Silicon -rubber insulated installation wire
Executive standard Q/LB
005.9-2006
This wire is suitable for use for rated voltage up to and
including AC 500V,DC 5KV ,12KV,15KV,20KV,25KV,30KV,as heat-resistant fixture
wire for electric motor and appliance.
Using feature The operating
temperature are -60 ~180 deg.
Silicon rubber insulated control cable
Executive standard Q/LB
006.1-2006
Usage It is used as signal transmission wire of appliances among
all kinds of mobile or fixed electrical equipment in petroleum,chemistry,power
generating and metallurgy industries under high,low temp and
acid,alkali,oil,water and corrosive circumstances at rated AC voltage up to
450/750V Using feature The operating temperature are - 60 ~180 deg.

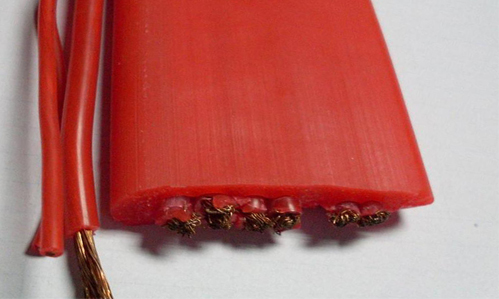

Silicon rubber insulated heat-resistant corrosion-resistant oil-resistant
oblate and flat cable
Executive standard Q/LB 006.2-2006
Usage it is used
as connecting cable among mobile electric equipment in electricity generating
,metallurgy,chemistry industries, ports and mine under circumstances.
Using
feature Rated voltage 450/750V,0.6/1KV
Operating temperature -60 ~180
deg.
