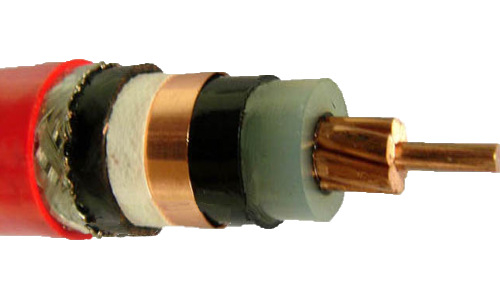

Converter Power Supply Cable (VFD cable)
内容介绍
Special Cables for Variable-Frequency Motors (VFD cable)
Structure & Technical Index
| Constructure | Technical Index | ||
| Conductor: |
Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard |
Rated Voltage: | U0/U 0.6/1kV |
| Insulation | PE Insulation | Test Voltage | 3500V/5min |
| Color Code | Black with Code/Color code | Min.Bending Radius | |
| Laying-up | Optimal pitch stranding, interstices fully filled for round shape. | Fixed laying | 5×D(Cable OD) |
| Wrapping tape | Aluminium foil | For moving installation | 10×D(Cable OD) |
| Shielding | Tinned copper wire braided,density 85% | Operating temperature | -20 ° to +70° |
| Outer sheath | Abrasion resistant flexible PVC | Flame Retardant Property | comply with IEC60332-1 |
| Sheath color | Black | Executive standard | GB/T12706.1/IEC60502.1 |
| Performance Requirements | Applications | ||
|
♦Low coupling capacitance. ♦Low coupling resistance. ♦Excellent electromagnetic compatibility (EMC). ♦High mechanical performance and tensile strength, long service life and low current interference. |
The double-shielded design is suitable for applications with stringent EMC requirements. It is used for connecting motors and inverters, and can withstand moderate mechanical stress in both dry and humid environments. The core insulation adopts low-capacitance PE (Polyethylene), which ensures interference-free operation for inverters, servo drives and DNC motors, especially in applications requiring long cable runs. |
||
| Certification |
|
||
Technical Properties
| Cores No.X Cross Section |
Appro. weight kg/m |
Appro. OD mm±10% |
|---|---|---|
| 4G1.5 | 0.23 | 10.6 |
| 4G2.5 | 0.30 | 12.3 |
| 4G4.0 | 0.49 | 14.6 |
| 4G6.0 | 0.63 | 16.4 |
| 4G10 | 0.86 | 20.1 |
| 4G16 | 1.29 | 23.4 |
| 4G25 | 1.86 | 27.0 |
| 4G35 | 2.61 | 32.7 |
| 4G50 | 2.95 | 36.1 |
| 4G70 | 3.95 | 42.3 |
| 4G95 | 5.30 | 47.7 |
| 4G120 | 6.60 | 51.9 |
| 4G150 | 7.04 | 57.5 |
| 4G185 | 8.38 | 61.1 |
| 4G240 | 12.17 | 69.3 |
| 3×1.5+3×0.25 | 0.21 | 10.2 |
| 3×2.5+3×0.5 | 0.22 | 11.9 |
| 3×4.0+3×0.75 | 0.32 | 14.1 |
| 3×6.0+3×1.0 | 0.42 | 15.8 |
| 3×10+3×1.5 | 0.64 | 19.0 |
| 3×16+3×2.5 | 0.85 | 23.4 |
| 3×25+3×4.0 | 1.40 | 26.2 |
| 3×35+3×6.0 | 1.72 | 29.0 |
| 3×50+3×10 | 2.34 | 34.6 |
| 3×70+3×10 | 3.17 | 38.8 |
| 3×95+3×16 | 4.16 | 45.0 |
| 3×120+3×16 | 5.25 | 50.8 |
| 3×150+3×25 | 6.43 | 55.2 |
| 3×185+3×35 | 8.34 | 62.0 |
| 3×240+3×40 | 12.25 | 67.0 |
Special Cables for High-temperature Resistant Frequency Converters
Executive Standard
Q/LB 115. 5, Based on the standard GB12706-2020
Usage
The cable is used in conveter-controlled drive as power supply cable or connecting cable and below in petroleum, chemistry,power geneating and metallurgy industries under high, low tempand acid, alkali,oilwater and corrosive circum-stances.
Using feature
Low effective operating capacitance.Excellent fire resistance and flams-retardante cable to be used in hazardous areas. Low transmission impedance:The shield hasresistance toEMF interference. The transmision impedance RX is ashield against induction and measureaent of the capacitancecoupling:Lowmission impedancetransprovides the cablewith good Emcompatibility. Symmetrical 3-core construction improved EM compatibility and better performance than 4-core cable,The threecores with weaterproof and heat-resist antresin insuIation arestranded evenly at gap to form arealconcentrie construction.
Rated voltage:0. 6/1KV.
Operating temperature:
F. insulated -40℃-275℃
silicon-rubber insulated -40℃-180℃
Type and Description
| Item | Code name | Explanation |
| Series code name | K | Heat-resistance Control cable |
| Plated layer of conductor | Y | Silver-plated |
| Insulation material |
F F₁ F₂ |
FEP max operating temp 200℃ PTFE max operating temp 260℃ PFA max operating temp 285℃ |
| Shield material |
P₀ P P₂ |
Tinned Cu wire braided Cu wire braided Copper tape |
| Sheath material |
F H11 H9 V₁₀₅ VF G |
FEP max operating temp 200℃ PTFE max operating temp 260℃ PFA max operating temp 285℃ 105℃ Flame-retardant PVC sheathed NBR sheathed Silicon rubber sheathed |
| Armor material |
22 32 |
Steel tape armored Fine steel wire armored |
| Specifications | - |
Core number×conductor section (N×S) N:2、3、4、5、7、10、12、14、16、19、24、27、30、37、44、48、52、61 S: 0.5、0.75、1.0、1.5、2.5、4、6(mm²) |
| Conductor type (fill in braces) |
A B C |
Single strand conductor 7-strand twisted conductor Multi-strand flexible conductor |
Model and Name
| Model | Name |
| BPGVF-P2R | Silicon-rubber insulated NBR sheathed shield converter power supply cable |
| BPF4H11-P2 | F4 insulated H11 sheathed shield converter power supply cable |
| BPGG-P2R | Silicon-rubber insulated Silicon-rubber sheathed shield converter power supply cable |
| BPF4G-P2R | F4 insulated Silicon-rubber sheathed shield converter power supply cable |
| BPF4VF-P2R | F4 insulated NBR sheathed shield converter power supply cable |
Technical Properties
|
Specifications (mm²) |
Max. outer Diameter | ||||
| BPGVF-P2R | BPF4H11-P2R | BPGG-P2R | BPF4G-P2R | BPF4VF-P2R | |
| 3×1.5+3×0.25 | 12.2 | 10.8 | 12.5 | 11.8 | 11.4 |
| 3×2.5+3×0.5 | 14.2 | 12.5 | 14.5 | 13.6 | 13.2 |
| 3×4+3×0.75 | 15.7 | 13.3 | 16.0 | 15.0 | 14.6 |
| 3×6+3×1 | 19.6 | 17.2 | 20.0 | 18.8 | 18.3 |
| 3×10+3×1.5 | 25.0 | 22.5 | 25.0 | 24.0 | 23.4 |
| 3×16+3×2.5 | 28.9 | 26.1 | 29.5 | 27.7 | 26.7 |
| 3×25+3×4 | 33.3 | 30.3 | 34.0 | 32.0 | 31.0 |
| 3×35+3×6 | 37.2 | 34.0 | 38.0 | 35.7 | 35.0 |
| 3×50+3×10 | 42.6 | 39.0 | 43.5 | 40.9 | 40.1 |
| 3×70+3×10 | 48.5 | 44.5 | 49.5 | 46.5 | 45.5 |
| 3×95+3×16 | 52.9 | 48.7 | 54.0 | 50.8 | 49.7 |
| 3×120+3×25 | 57.8 | 53.3 | 59.0 | 55.5 | 54.5 |
| 3×150+3×35 | 63.9 | 59.0 | 65.2 | 61.3 | 60.3 |
| 3×185+3×35 | 78.2 | 72.4 | 79.8 | 75.0 | 73.8 |
| 3×240+3×50 | 86.8 | 80.5 | 88.6 | 83.3 | 82.1 |
| Described as e.g:BPGVF-P2R 0.6/1KV 3×25+3×4mm² | |||||
Special Cables for Cross-linked Polyethylene-insulated Variable-frequency Drives
Executive Standard
Q/LB 115. 5, Based on the standard GB12706-2020
Usage
The cable is used in converter-controlled driveas power supply cable or connecting cable. it isespecially suitable suitable for use in pumps fansconveyers transportation belt and conditioner usedin paper making, iron &steel industry textile metalprocessing and food processing.
Using feature
Low effective operating capacitance.
Low transmission impedance
Rated voltage:0.6/1KV
Operating temperature:90°C
Type and Description
| Model | Name |
| BPYJVP | XLPE insulated Cu-wire braided shielded PVC sheathed converter power supply cable |
| BPYJPVP | XLPE insulated Cu-wire braided Shielded and general shielded PVC sheathed converter power supply cable |
| BPYJPVP₂ | XLPE insulated Cu-wire braided shielded Cu tape general shielded PVC sheathed converter power supply cable |
| BPYJVP₂ | XLPE insulated Cu tape general shielded PVC sheathed converter power supply cable |
| BPYJP₂VP₂ | XLPE insulated Cu tape shielded and general shielded PVC sheathed converter power supply cable |
| BPYJP₂VP | XLPE insulated Cu tape shielded Cu-wire braided general shielded PVC sheathed converter power supply cable |
| BPYJVP₂P | XLPE insulated Cu tape and Cu-wire braided general shielded PVC sheathed converter power supply cable |
| BPYJP₃VP | XLPE insulated Al foil/plastic film compound shielded Cu-wire braided general shielded PVC sheathed converter power supply cable |
| BPYJP₃VP₂ | XLPE insulated Al foil/plastic film compound shielded Cu tape general shielded PVC sheathed converter power supply cable |
Technical Properties
|
Specifications (mm²) |
Max. outer Diameter mm |
||||||
| BPYJVP | BPYJPVP | BPYJPVP₂ | BPYJVP₂ |
BPYJP₂VP BPYJP₃VP₂ |
BPYJP₂VP BPYJP₃VP |
BPYJVP₂P | |
| 3×1.5+3×0.25 | 10.8 | 11.8 | 11.6 | 10.6 | 11.4 | 11.5 | 11.2 |
| 3×2.5+3×0.5 | 12.6 | 13.6 | 13.4 | 12.4 | 13.2 | 13.3 | 13.0 |
| 3×4+3×0.75 | 14.0 | 15.0 | 14.8 | 13.7 | 14.6 | 14.8 | 14.4 |
| 3×6+3×1 | 17.8 | 18.8 | 18.6 | 17.5 | 18.4 | 18.5 | 18.2 |
| 3×10+3×1.5 | 23.1 | 24.0 | 23.8 | 22.8 | 23.7 | 23.8 | 23.4 |
| 3×16+3×2.5 | 26.6 | 27.7 | 27.5 | 26.3 | 27.3 | 27.4 | 27.0 |
| 3×25+3×4 | 31.0 | 32.0 | 31.8 | 30.7 | 31.6 | 31.7 | 31.3 |
| 3×35+3×6 | 34.6 | 35.7 | 35.5 | 34.3 | 35.2 | 35.4 | 35.0 |
| 3×50+3×10 | 39.7 | 40.9 | 40.7 | 39.4 | 40.3 | 40.5 | 40.0 |
| 3×70+3×10 | 45.3 | 46.5 | 46.3 | 45.0 | 45.9 | 46.1 | 45.6 |
| 3×95+3×16 | 49.6 | 50.8 | 50.6 | 49.3 | 50.2 | 50.4 | 50.0 |
| 3×120+3×25 | 54.3 | 55.5 | 55.2 | 54.0 | 54.9 | 55.1 | 54.6 |
| 3×150+3×35 | 60.1 | 61.3 | 61.0 | 59.8 | 60.7 | 60.9 | 60.4 |
| 3×185+3×35 | 73.8 | 75.0 | 74.7 | 73.5 | 74.4 | 74.6 | 74.1 |
| 3×240+3×50 | 82.0 | 83.3 | 83.0 | 81.6 | 82.5 | 82.8 | 82.2 |
