0.6/1KV PVC Insulated Power Cable

Index>Power Cable / Energy Cable>0.6/1KV PVC Power Cable

Type and Description

Type	Description	Application

VV VLV	Copper(aluminum)conductor,PVC insulated and PVC sheathed cable	For laying indoors,in tunnel or pipe,unable to bear external mechanical force

VY VLY	Copper (aluminum)conductor,PVC insulated and PE sheathed cable

VV22 VLV22	Copper (aluminum)conductor,PVC insulated,steel tape armored and PVC sheathed cable	For laying indoors,in tunnel,cable trench,or direct in ground,can bear external mechanical force ,while unable to bear large tension

VV23 VLV23	Copper (aluminum)conductor,PVC insulated,steel tape armored and PE sheathed cable

VV32 VV42 VLV32 VLV42	Copper (aluminum)conductor,PVC insulated,thin(thick) steel wire armored and PVC sheathed cable	For laying in high drop area ,can bear external mechanical force and certain tension
VV33 VV43 VLV33 VLV43	Copper (aluminum)conductor,PVC insulated,thin (thick)steel wire armored and PE sheathed cable

Standard of Product

The product is manufactured according to the standard of GB/T 12706-2002.At the same time ,it can also be manufactured according to IEC, BS, DIN and AEIC upon request.

Application
The product is suitable for power distribution lines or fixed installation with rated power-frequency voltage up to and including 0.6/1kV.

Operating Characteristics
Rated power-frequency voltage Uo/U: 0.6/1kV
Max. permissible continuous operating temperature of conductor: 70℃.
Max. temperature of conductor during short-circuit(5s maximum duration) shall not exceed:
Cross-section of conductor ≤300mm2 :160℃;
Cross-section of conductor ＞300mm2 :140℃.
The ambient temperature under installation should not below 0℃.
The bending radius of a single-core cable: not less than 20 times of cable’s OD
The bending radius of a multi-core cable: not less than 15 times of cable’s.OD

Installation operating condition of cable
* In Air
The single-core cables are paralleled laid , the distance between the cable center is 2 times diameter of the cable for cross-section of conductor≤185 mm2 and 90mm for cross-section of conductor ≥240 mm2
Ambient air temperature: 40℃
Max. permissible continuous operating temperature of conductor: 70℃
Correction factor of current rating under different ambient temperature:

Ambient air temperature	20℃	25℃	30℃	35℃	40℃	45℃
Correction factor	1.29	1.22	1.15	1.08	1.0	0.91

* Direct in the ground
When the single-core cables are layed separately, the
distance between the cable’s center is 2 times diameter
of the cable.
Soil temperature: 25℃
Max. continuous operating temperature of conductor: 70℃.
Soil thermal resistivity: 1.0k.m/w
Depth of laying: 0.7m
Correction factor of current rating under different soil temperature:

Soil temperature	20℃	25℃	30℃	35℃	40℃
Correction factor	1.05	1.0	0.94	0.88	-

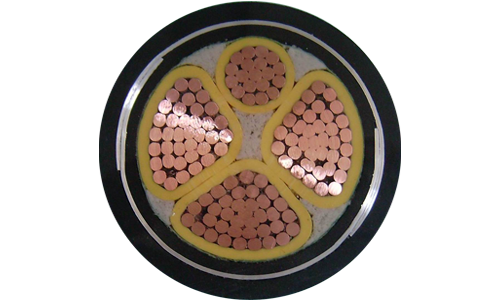

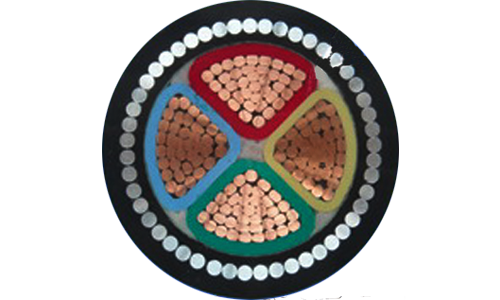

Structure Diagram of Cable
