PVC Insulated Cable (House Electric wire / Residential wire)
内容介绍
Type and Description
|
Type |
Description |
Rated voltage |
Executive standard |
|
227IEC01（BV） |
Cable with hard single conductor, without sheath for general purpose |
450/750 |
GB/T5023-2008 |
|
227IEC02（RV） |
Cable with soft single conductor, without sheath for general purpose |
450/750 |
|
|
227IEC05（BV） |
Cable with solid single conductor, without sheath at 70℃ of conductor temperature for interior wiring |
300/500 |
|
|
227IEC06 (RV) |
Cable with soft single conductor, without sheath at 70℃ of conductor temperature for interior wiring |
300/500 |
|
|
227IEC07 (BV-90) |
Cable with solid single conductor, without sheath at 90℃ of conductor temperature for interior wiring |
300/500 |
|
|
227IEC08 (RV-90) |
Cable with solid single conductor, without sheath at 90℃ of conductor temperature for interior wiring |
300/500 |
|
|
227IEC10（BVV） |
Light type cable with PVC sheath |
300/500 |
|
|
227IEC52（RVV） |
Light type soft wire with PVC sheath |
300/300 |
|
|
227IEC53（RVV） |
Common soft wire with PVC sheath |
300/500 |
|
|
BV |
Wire with copper core, PVC insulation |
300/500 |
JB8734-1998 |
|
BLV |
Wire with aluminum core, PVC insulation |
450/750 |
|
|
BVR |
Soft wire with copper core, PVC insulation |
450/750 |
|
|
BVV |
Round type cable with Copper core, PVC insulation and sheath |
300/500 |
|
|
BLVV |
Round type cable with aluminum core, PVC insulation and sheath |
300/500 |
|
|
BVVB |
Flat type cable with Copper core, PVC insulation and sheath |
300/500 |
|
|
BLVVB |
Flat type cable with aluminum core, PVC insulation and sheath |
300/500 |
|
|
RVVP |
Soft cable (wire) with Copper core, PVC insulation and shielding, PVC sheath |
300/300 |
|
|
RVS |
Soft pair-twisted cable (wire) with Copper core, PVC insulation without sheath for connection purpose |
300/300 |
Standard of Product
The product is manufactured according to GB/T5023-2008,JB8734-1998 standard,at the same time,it can also be manufactured according to IEC, BS, DIN and AEIC upon request.
Application
The product is suitable for power unit,fixed wiring and connecting electric appliance for rated voltage up to and including 450/750V
Operating characterastics
1)Max. continuous operating temperature of conductor :90℃ for BV-90、RV-90 type cable and 70℃ for other types.
2)The ambient temperature under installation should not be lower than 0℃
3)Recommended bending radius:
OD Less than 25mm: The bending radius should not be less than 4 times of the cable’s OD
OD more than and including 25mm: The bending radius should not be less than 6 times of the cable’s OD

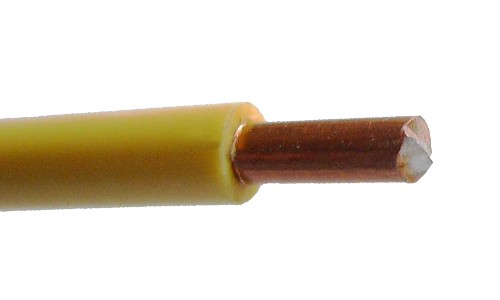

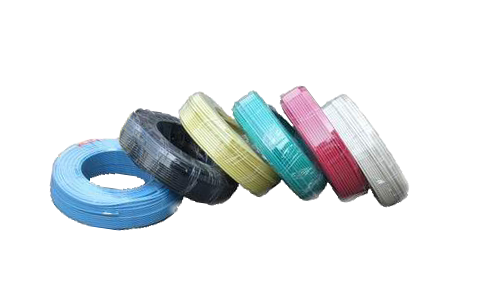

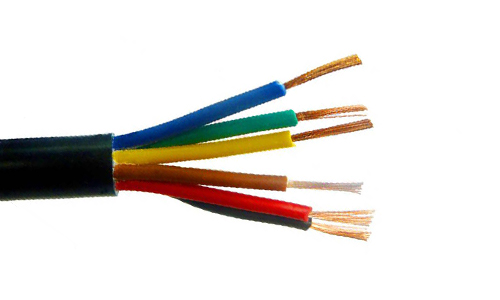

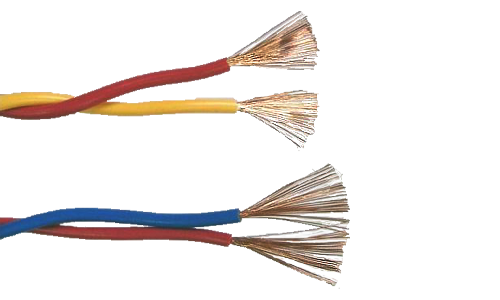

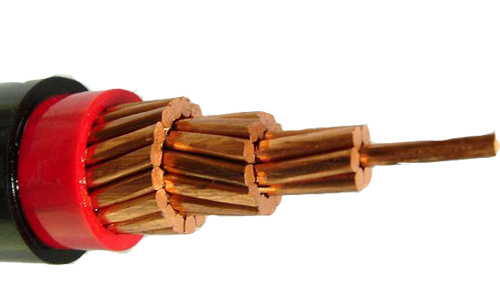

Structure Drawing of Product
