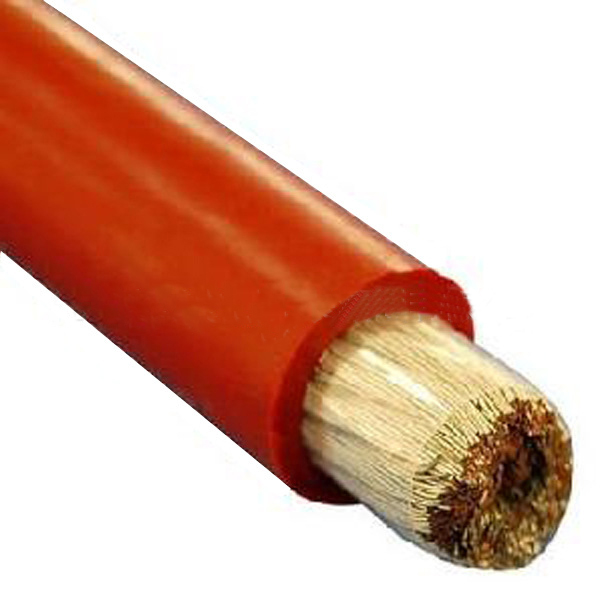

NBR (nitrile-butadiene rubber) insulated and sheathed power cable

NBR (nitrile-butadiene rubber) insulated and sheathed power cable


Index> Rubber Sheath Cable >NBR (Nitrile Butadiene Rubber) Insulation Cable


内容介绍


cable introduction


Executive standard   JB1138-76, JB1170-75 AND Q/LB 002.1-2006
Usage  It is used as mobile electrical equipment wire of appliance in power generating metallurgy chemistry industry voltage (Uo/U) up to and including 0.6/1KV
Using feature:
It is cold-resistant,heating-resistant flame-resistant solvent-resistant operating round temperature:-40 C~90C

1. DC rated voltage: U0 / U 0.6/1KV

The maximum temperature: 105 oC

Minimum temperature: -40oC to lay fixed

2. The laying of cables to install the temperature should not be less than -25oC .

3. Allow cable bend radius: the smallest cable for cable diameter 12 times

4: the basic model and name





Table 1:

Model

Product Name

YVFR

NBR insulating jacket soft power cable

YVFRB

NBR insulating jacket flat soft power cable

YVFRP2

NBR insulating jacket copper tape shield soft power cable

YVFRP

NBR insulating jacket braided copper shield soft power cable

NH-YVFRP

NBR insulating jacket copper wire braided shield fire-proof soft power cable

Note: before the flame-retardant cable model ZR,Conductor strand in the core copper wire can be tinned,we also produce NBR control cable,signal cable,special shielded cable.





The main technical indicators :

1.Finished conductor cable (R-type) DC resistance (in line with the provisions of GB3956) by reference to Appendix A Table 2.

2.20 when the insulation resistance of not less than 50MΩ/KM.

3.The exchange of products subjected to 50HZ3.5KV/5min cable voltage test does not breakdown.



Table 2:

Core Line*Nominal section(mm2)

Conductor structure

(Several root*Diameter)

(B/R)

mm

The largest cable Diameter(mm)

Reference weight(kg/km)

YVFR

YVFRP

YVFR

YVFRP

1*2.5

51*0.25

4.0

-

72

-

1*4

82*0.25

6.0

-

95

-

1*6

123*0.25

7.0

-

130

-

1*10

204*0.25

9.5

-

190

-

1*16

323*0.25

11.0

-

255

-

1*25

513*0.25

12.0

-

365

-

1*35

722*0.25

13.5

-

475

-

1*50

1026*0.25

15.0

-

670

-

1*70

1406*0.25

17.0

-

830

-

1*95

486*0.50

19.0

-

1200

-

1*120

608*0.50

21.0

-

1360

-

1*150

760*0.50

23.0

-

1654

-

1*185

945*0.50

26.0

-

2050

-

2*2.5

51*0.25

10.5

11.5

159

205
