Naval Ship Cable

Naval Ship Cable


Index>Railway Cable: >Cable for Metro/Railway Vehicles


内容介绍


cable introduction


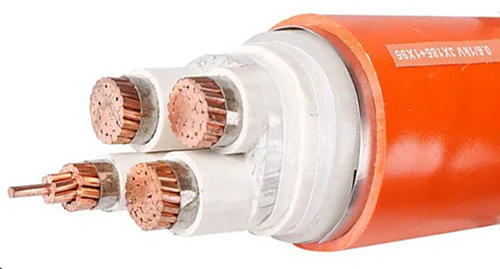

Low Voltage Power Cable for Naval Ship

XLPE insulated naval ship (fire-resistance) power cable for rated Voltage up to and including 0.6/1kV

Application

The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore building etc.

Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire Resistant

Marking

Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 0.6/1kV
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 3.5kV/5min. without puncture


Type and Description


EPR insulated naval ship (fire-resistance) power cable for rated Voltage up to and including 0.6/1kV


Application

The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore building etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire Resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 0.6/1kV
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 3.5kV/5min. without puncture


Type and Description


Silicon Rubber insulated naval ship (fire-resistance) power cable for rated Voltage up to and including 0.6/1kV

Application

The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore building etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire Resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 0.6/1kV
Long time permissible maximum operating temperature 95°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 3.5kV/5min. without puncture

Type and Description



Control Cable for Naval Ship


XLPE insulated naval ship (fire-resistance) control cable for rated Voltage up to and including 600V

Application

The cable is intended for general control systems of various naval ships, oil platform and offshore building etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-376        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire Resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 600V
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 1.5kV/5min. without puncture


EPR insulated naval ship (fire-resistance) Control cable for rated Voltage up to and including 600V

Application

The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore building etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-376        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire Resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 600V
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 1.5kV/5min. without puncture


Type and Description



Instrumentation and Telecommunication Cable for Naval Ship


XLPE insulated naval ship (fire-resistance) Instrumentation and Telecommunication Cable for rated Voltage up to and including 300V


Application

The cable is intended for general control systems of various naval ships, oil platform and offshore building etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-376        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire Resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 300V
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 1.5kV/5min. without puncture


Naval ship water-tightness Power Cable


XLPE/EPR insulated naval ship water-tightness (fire-resistance) power cable for rated voltage up to and including 0.6/1kV




Application

The cable is intended for electric power, lighting and general control systems requesting water-tightness on submarine.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire resistant

Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 0.6/1kV
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 3.5kV/5min. without puncture
The cable can endure 6.0 MPa water pressure and two hour longtitudinal seal test

Naval ship water-tightness Control cable


XLPE/EPR insulated naval ship water-tightness (fire-resistance) Control Cable for rated voltage up to and including 600V




Application

The cable is intended for general control systems requesting water-tightness on submarine.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-376        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 600V
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 1.5kV/5min. without puncture
The cable can endure 6.0 MPa water pressure and two hour longtitudinal seal test

Naval ship water-tightness Telecommunication Cable


XLPE/EPR insulated naval ship water-tightness (fire-resistant )telecommunication cable for rated voltage up to and including 300V




Application

The cable is intended for general control systems requesting water-tightness on submarine.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-24643   --Design
  • »»IEC 60092-376        --Design
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke
  • »»IEC60331        --Fire resistant


Marking


Insulated core shall identified by color or figure and comply with the stipulations of GJB1916. The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 300V
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
A.C.voltage test 1.5kV/5min. without puncture
The cable can endure 6.0 MPa water pressure and two hour longtitudinal seal test.
JKMEH-45 series cable can endure water pressure equal to 45 atmosphere pressure and two hour longtitudinal seal test.

Special Cable for Naval Ship


Low smoke halogen-free shore connection cable for naval ships



Application

The cable is intended for shore power connection when anchoring. The structure and material of cable comply with GJB 1916 and MIL-DTL24643/3C,vulcanizing cross-linked polyethylene is used for the sheath, the cables have better properties of low temperature and flexibility, and flame-retardant, low smoke, halogen-free, low toxicity and good electrical performance etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»MIL-DTL-246432/3C        --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60092-351        --Insulation
  • »»IEC 60092-359        --Sheath
  • »»IEC 60332-3-22     --Flame Retardant
  • »»IEC60754        --Halogen free
  • »»IEC61034        --Low Smoke


Marking


Insulated core shall identified figure . The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage A.C. orD.C. 0.6/1KV
Long time permissible maximum operating temperature 90°C
Cable minimum bending radius ≥6D(D: cable diameter.mm)
Conductor Resistance comply with the stipulations of GJB1916
Low temperature bending test pass


Rubber cable for underwater sound transducer



Application

The cable is intended for sonar transducer system fixed placed in naval ships, submarine and undersea, and adapt to submarine pump and connecting circuit for undersea electrical equipment which the cable is require to have water-tight performance.



Executive Standards

  • »»GJB 1916           --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60092-351        --Insulation
  • »»IEC 60092-359        --Sheath
  • »»IEC 60332-3-22     --Flame Retardant


Marking


Insulated core shall identified figure . The sheath color is printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 500V,1000V
Long time permissible maximum operating temperature 90°C
Water pressure test The cable can endure water pressure 4.41MPa and two hour crosswise seal test
The insulation resistance of cable after 90 days immersing in the water at room temperature Core--Core Not less than 150MΩ.Km
Core--Shielding Not less than 150MΩ.Km
Shielding--Water Not less than 75MΩ.Km


Aramid fiber strength signal cable for naval ships



Application

The cable is intended for special signal and lighting device of submarine. High quality aramid fiber material is used as strength core instead of traditional tightwire with the properties of small diameter, light weight, flexible and good electrical performance etc.



Executive Standards

  • »»GJB 1916           --Design
  • »»IEC 60092-376        --Design
  • »»IEC 60092-351        --Insulation
  • »»IEC 60092-359        --Sheath
  • »»IEC 60332-3-22     --Flame Retardant


Service Property Parameter

Main Parameter Performance Index
Rated voltage A.C.250V,or D.C.500V
Long time permissible maximum operating temperature 90°C
Water pressure test The cable can endure water pressure 4.41MPa and two hour crosswise seal test
Ambient temperature -40°C~+50°C and allowable to operating in sea
Cable Tensile breaking force≥10000N ≥10000N


Degaussing cable



Application

The cable is intended for degaussing stations or the degaussing systems of degaussing ships. The structure and material comply with CB1157 with the properties of oil resistance, abrasion resistance, sea water proof flexible and good electrical performance etc.



Executive Standards

  • »»CB 1157           --Design
  • »»IEC 60092-353        --Design
  • »»IEC 60092-351        --Insulation
  • »»IEC 60092-359        --Sheath
  • »»IEC 60332-3-22     --Flame Retardant


Marking


The sheath is printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated voltage 0.6/1KV
Long time permissible maximum operating temperature 90°C
Water pressure test The cable can endure water pressure 4.41MPa and two hour crosswise seal test
Ambient temperature -2°C~+32°C in sea water or fresh water


Type and Description

Type No. of cores × nominal cross sectional area (mm2) Conductor structure (Number/diameter) Calculated diameter Calculated mass kg/km
nom. Max.
DSEHR 1 × 70 999/0.30 22.5 24.5 1030
1 × 95 1344/0.30 24.2 27.0 1321
1 × 120 1702/0.30 27.1 29.0 1609
1 × 150 2109/0.30 29.7 32.0 1974
1 × 185 2623/0.30 32.6 35.0 2405
1 × 240 1891/0.40 36.5 40.0 3065


Low smoke digital communication LAN cable for naval ships


Application

The cable is intended for naval ship digital communication system such as general digital network, local area network and digital communication system, the highest frequency band can reach 155MHz (Cat 5E) or 350 MHz (Cat6). The cable have the property of stable transmission, low attenuation, good anti-interference & flame-retardant, low-smoke and halogen- free etc.



Executive Standards

  • »»IEC 61156           --Design
  • »»TIA/EIA-568-B        --Design
  • »»IEC 60332-3-22        --Flame Retardant
  • »»IEC 60754        --Halogen free
  • »»IEC 61034        --Low smoke


Marking


The insulation shall be identified by four color assembly: brown + white, orange + white and blue + white. The sheath is printed with manufacture name, type, specifications, voltage and length etc.

Service Property Parameter

Item name Unit Cat 5E Cat 6
Characteristic impedance Ω 100 ± 15 100 ± 15
（1kHz）Operating capacitance nF/100m ≤ 5.6 ≤ 5.6
D.C. conductor resistance at 20℃ Ω/100m ≤ 9.38 ≤ 6.658
Delay ns/100m ≤ 538 ≤ 536
D.C. resistance unbalance % ≤ 3 ≤ 3
Ground capacitance unbalance pF/100m ≤ 330 ≤ 330
Long time permissible maximum operating temperature ℃ 60 60

Return to the previous page



PreviousPage Next    Page

Contact Us Now ∨

0 person contacting us now




Contact Information

Company Name:CHINA LUBAO CABLE GROUP CO.,LTD.

Telephone:0086-13865965950

Fax:0086-551-64266536

Email:sales@lubaocables.com

Address:Wenzhong Road,Yaohai Indrustrial Park,Hefei City,China
