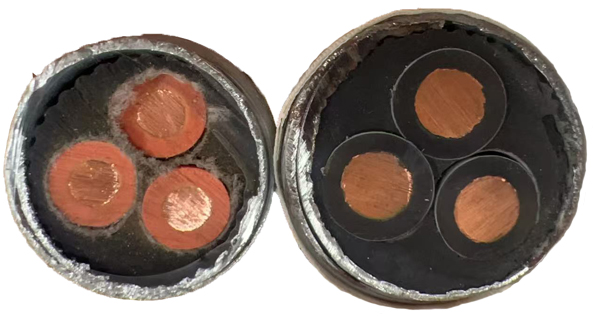

Petroleum Submersible Pump (ESP) Cable

Application

The cable is suitable for rated voltage in 3 - 6 kv line， is fixed in the land or offshore platform. wells in the submersible pump power unit with power



Reference Standards

  • »»API RP 11S5-2008,11S6-2008
  • »»IEEE1017,1018,1019
  • »» GB/T16750-2008

Product Characteristics

  • 1) Cable rated temperature range of 90-250℃
  • 2)Different types of cable products corresponding to the conductor allows the highest temperature is different, see the specific model specifications
  • 3)Conductor size: AWG#1,2,4,5,6,7

Type and Specification

Type Name Max. working temperature(℃)
QYPN PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump 96
QYE Q insulated and lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump 232
QYEN EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump 138
QYEE EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump 204
QYJYFTTX Polyimide compound film sintering/PFA compound insulated fluorine plasticinner sheath stainless steel tape armored with interlock ESP flat motor lead extension cable 260
QYJYE Q Polyimide compound film sintering/EPR compound insulated lead inner sheath stainless steel tape(galvanizing steel tape) armored with interlock ESP flatmotor lead extension cable 204
QYJYFTQX Polyimide F46 compound film sintering/F46 compound insulated leadinner sheath stainless steel (galvanizing steel tape) armored with interlock ESP flat motor lead extension cable 232

Structure size and Technical Data

Description
Rating 		Cond.
AWG Size 		Conductor Diameter
Inch   mm 		Insulation Diameter
Inch   mm 		Jacket Diameter
Inch   mm 		Overall Dimension
Inch          mm 		Weight Per
Kg/M
QYPN-Flat-5kv,
-30°F(-34℃)to
205℉(96℃) 		6# 0.162   4.11 0.348   8.84 0.474   12.04 0.604×1.512   15.34×38.41 1.33
4# 0.204   5.18 0.39   9.91 0.516   13.11 0.646×1.639   16.41×41.63 1.64
2# 0.258   6.55 0.444   11.28 0.57   14.48 0.700×1.800   17.78×45.72 2.08
1# 0.289   7.34 0.476   12.09 0.602   15.29 0.731×1.894   18.57×48.11 2.37
QYPN-Round-5kv,
-30°F(-34℃)to
205℉(97℃) 		6# 0.162   4.11 0.348   8.84 0.94   23.88 1.09   27.69 1.37
4# 0.204   5.18 0.39   9.91 1.03   26.16 1.18   29.97 1.71
2# 0.258   6.55 0.444   11.28 1.147   29.13 1.297   32.94 2.23
1# 0.289   7.34 0.476   12.09 1.216   30.89 1.366   34.7 2.57
QYEQ-Flat-5kv,
450℉(232℃) 		4# 0.204   5.18 0.36   9.14 0.446   11.33 0.672×1.921   17.07×48.79 3.69
2# 0.258   6.55 0.414   10.52 0.5   12.7 0.726×2.085   18.44×52.96 4.39
1# 0.289   7.34 0.446   11.47 0.532   13.51 0.757×2.176   19.23×55.27 4.81
QYEQ-Round-5kv,
450℉(232℃) 		4# 0.204   5.18 0.39   9.91 1.096   27.84 1.246   31.65 2.99
2# 0.258   6.55 0.414   10.52 1.186   30.12 1.336   33.93 3.29
1# 0.289   7.34 0.446   11.33 1.236   31.4 1.386   35.21 3.68
6# 0.162   4.11 0.348   8.84 0.949   24.1 1.099   27.91 1.45
QYEN-Round-5kv,
-30℉(-34℃)
to280℉(138℃) 		4# 0.204   5.18 0.39   9.91 1.025   26.03 1.19   30.23 1.67
2# 0.258   6.55 0.444   11.28 1.143   29.03 1.308   33.22 2.19
1# 0.289   7.34 0.476   12.09 1.212   30.78 1.377   34.98 2.53
QYEE-Flat-5KV,
60℉(-51℃)to
400℉(204℃) 		4# 0.204   5.18 0.39   9.91 0.5   12.7 0.660×1.690   16.77×42.93 1.67
2# 0.258   6.55 0.444   11.28 0.55   13.97 0.714×1.852   18.14×47.04 2.14
1# 0.289   7.34 0.475   12.07 0.581   14.76 0.745×1.945   18.92×49.40 2.44
QYEE-Round-5KV,
60℉(-51℃)
to400℉(204℃) 		6# 0.162   4.11 0.348   8.84 0.949   24.11 1.1   27.92 1.41
4# 0.204   5.18 0.39   9.91 1.039   26.39 1.19   30.23 1.76
2# 0.258   6.55 0.444   11.28 1.143   29.03 1.308   33.22 2.19
1# 0.289   7.34 0.475   12.07 1.224   31.09 1.374   34.9 2.62
QYEQ-Flat-5kv,
450℉(232℃) 		4# 0.204   5.18 0.36   9.14 0.446   11.33 0.672×1.921   17.07×48.79 3.69
2# 0.258   6.55 0.414   10.52 0.532   12.7 0.726×2.085   18.44×52.96 4.39
1# 0.289   7.34 0.446   11.47 0.532   13.51 0.757×2.176   19.23×55.27 4.81
QYEO-Round-5kv,
450℉(232℃) 		4# 0.204   5.18 0.39   9.91 1.096   27.84 1.246   31.65 2.99
2# 0.258   6.55 0.414   10.52 1.186   30.12 1.336   33.93 3.29
1# 0.289   7.34 0.446   11.33 1.236   31.4 1.386   35.21 3.68




Logging Cable(JB/T3302-1999)

Application

It conveys various instruments, transmits all types of signals between the surface control system and downhole equipment, obtains the depth position of downhole data, and measures various downhole parameters.



Reference Standards

  • »»JB/T3302-1999

Product Characteristics

  • 1) Cable rated temperature range of 150-260℃
  • 2) Cable diameter range of Φ4.7~13.2mm
  • 3) Cable core number range of 1 to 7 core

Product Presentation

  • Single core load detection cable--WGS
  • Three core load detection cable---W3
  • Four core load detection cable--W4
  • Seven core load detection cable--W7
  • Anti - sulfur type load detection cable FL-W
  • Room temperature cable (-30~150C)-Modified polypropylene insulation (code B)
  • High lemperature cable (-50~232℃)一FEP (code F46)
  • Total screened一P
  • Individual screened and total screened一PP
  • Seven core of modified polypropylene insulation split-phase total shield the double-layer stee| wire armoured 11.80 mm bearing load detection cable model is expressed as: W7BPP-11,80

Type Specification &Technical Data


Type Nominal diameter
mm 		Conductor nominal cross section
mm2 		Conductor structure
No./diameter 		Rated pull-off force
kN 		(20℃)Conductor DC Resistance
Ω/km 		(20℃)Insulation resistance Capacitor
(1kHz)μF/km
WGSB-4.7 4.7 0.56 7/0.32 15 ≤36.00 ≥200 ≤0.17
W4B-4.7 4.7 0.22 7/0.20 13 ≤84.30 ≥200 ≤0.19
WGSB-5.6 5.6 1.01 19/0.26 25 ≤18.10 ≥200 ≤0.22
W3BP-5.6 5.6 0.24 7/0.21 25 ≤84.30 ≥200 ≤0.17
W4BP-5.6 5.6 0.24 7/0.21 25 ≤84.30 ≥200 ≤0.15
WGSB-8.0 8 1.02 7/0.43 45 ≤18.10 ≥200 ≤0.14
W3BP-8.0 8 0.56 7/0.32 45 ≤36.00 ≥200 ≤0.18
W4BP-8.0 8 0.49 7/0.30 45 ≤36.00 ≥200 ≤0.20
W7B-6.4 6.4 0.24 7/0.21 25 ≤84.30 ≥200 ≤0.13
W7BP-10.8 10.8 0.56 7/0.32 80 ≤36.00 ≥200 ≤0.19
W3BP-11.8 11.8 0.56 7/0.32 80 ≤18.10 ≥200 ≤0.14
W7BP-11.8 11.8 0.56 7/0.32 80 ≤36.00 ≥200 ≤0.14
W7BPP-11.8 11.8 0.56 7/0.32 80 ≤36.00 ≥200 ≤0.16
W7BP-12.6 12.6 0.56 7/0.32 80 ≤36.00 ≥200 ≤0.14
W7BP-13.2 13.2 0.56 7/0.32 85 ≤36.00 ≥200 ≤0.14
WGSF46-5.6 5.60 1.01 19/0.26 25 ≤18.10 ≥500 ≤0.20
W3F46-5.6 5.60 0.24 7/0.21 25 ≤84.30 ≥500 ≤0.17
W4F46P-5.6 5.60 0.24 7/0.21 25 ≤84.30 ≥500 ≤0.17
WGSF46-8.0 8.00 1.02 7/0.43 45 ≤18.10 ≥500 ≤0.14
W3F46P-8.0 8.00 0.56 7/0.32 45 ≤36.00 ≥500 ≤0.17
W4F46P-8.0 8.00 0.49 7/0.30 45 ≤36.00 ≥500 ≤0.19
W7F46P-11.8 11.80 0.56 7/0.32 85 ≤36.00 ≥500 ≤0.13
W7F46PP-11.8 11.80 0.56 7/0.32 85 ≤36.00 ≥500 ≤0.16
W7F46P-12.6 12.60 0.56 7/0.32 85 ≤36.00 ≥500 ≤0.13
W7F46P-13.2 13.20 0.56 7/0.32 85 ≤36.00 ≥500 ≤0.13
Frequency Voltage test 1KV 5min no breakdown
