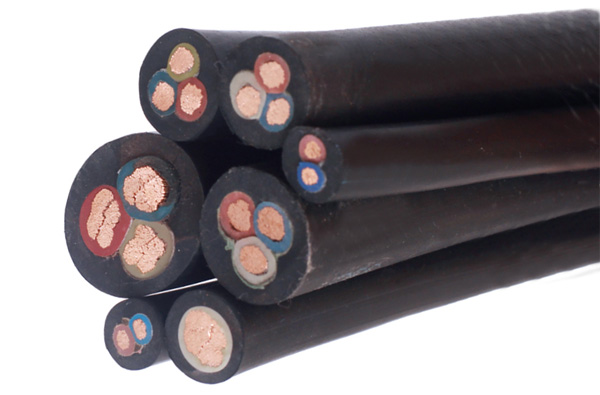

Wind Power Generation Mobile Anti-reversing Cold-proof Flame-retardant flexible Cable
Application
This product is suitable for power transmission systems in wind power generation equipment, particularly for the vertically installed section from the rotor to the base of the tower.
Reference Standards
- »»Q/LB 37
- Referring to IEC60092,GB5013,IEC60502.etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated voltage | 0.6/1kV,1.8/3kV |
| Long time permisssible maximum operating temperature | 90℃ |
| min. operating temperature | -40℃ |
| Max permitted conductor short circuit temperature | 250℃ (Maximum continuation time: 5 seconds.) |
| Cable minimum bending radius | ≥4D (D: Cable diameter.mm) |
| Max. permitted tension load | 15N/mm2,catculated by conductor cross section. |
| The cable shall have the property of oil-proof and Resistant to seawater erosion. . | |
Type and Description
| Type | Rated Voltage | Description |
| FDZ-YEFR |
0.6/1KV 0.9/1.5KV 1.8/3.0KV |
Copper conductor EPR insulated cold-proof oil-proof rubber sheathed wind power generation mobile flame-retandant flexible cable |
| FDZ-GVV | PVC insulation and sheathing, cold-resistant, flame-retardant, torsion-resistant for fixed installation, power flexible cable | |
| FDZ-YVV | PVC insulated and sheathing torsion-resistant, cold-resistant, flame-retardant mobile power flexible cable | |
| FDZ-GEE | PUR insulation and sheathing, cold-resistant, flame-retardant, torsion-resistant for fixed installation, power flexible cable | |
| FDZ-YEE | PUR insulated and sheathing torsion-resistant, cold-resistant, flame-retardant mobile power flexible cable | |
| FDZ-GUU | Halogen-free PUR insulation and sheathing, cold-resistant, flame-retardant, torsion-resistant for fixed installation, power flexible cable | |
| FDZ-YUU | Halogen-free PUR insulated and sheathing torsion-resistant, cold-resistant, flame-retardant mobile power flexible cable | |
| FDZ-GVVX | Tinned copper conductor PVC insulation and sheathing, cold-resistant, flame-retardant, torsion-resistant for fixed installation, power flexible cable | |
| FDZ-YVVX | Tinned copper conductor PVC insulated and sheathing torsion-resistant, cold-resistant, flame-retardant mobile power flexible cable | |
| FDZ-GEEX | Tinned copper conductor PUR insulation and sheathing, cold-resistant, flame-retardant, torsion-resistant for fixed installation, power flexible cable | |
| FDZ-YEEX | Tinned copper conductor PUR insulated and sheathing torsion-resistant, cold-resistant, flame-retardant mobile power flexible cable | |
| FDZ-GUUX | Tinned copper conductor Halogen-free PUR insulation and sheathing, cold-resistant, flame-retardant, torsion-resistant for fixed installation, power flexible cable | |
| FDZ-YUUX | Tinned copper conductor Halogen-free PUR insulated and sheathing torsion-resistant, cold-resistant, flame-retardant mobile power flexible cable |
Main property index and technical requirement
-
1.Conduclor should be tinned flexible copper wire class 5 or class 6 as specified in GB/T3956. Conductor d.c. resistance at 20°C shall be in accordance with GB/T3956
-
2.Insulation shall adopt EPR basis rubber which is of great aging resistant performance and etectrical property. Completed cable power frequency sparking test: cable ratedvoltage 0.6/1kV. 3.5kV/5min without puncture, 1.8/3kV, 6.5kV/5 min. without puncture.
-
3.Sheath shall adopt rubber which is of cold-proof, oil-proof. light aging-resisting and fiame-retardant properties with its color generally black.
-
4.Flame-retardant property shall be in accordance with GB/T18380.1.
-
5. Anti-reversing test
5.1 Individual cable 10m impending freely at ambient tem-perature will not crack after 10000 cycles reversing (1 time is reversing 1 cycle forward and reverse). and voltage test2.5U,/5min without puncture.
5.2 Individual cable 10m impending freely at -40°C will not crack after 7000 cycles reversing (1 time is reversing240° forward and reverse), and voltage test 2.5U05min without puncture.
Wind Power Mobile Cold-proof Anti-reversing Control Cable
Application
For electrical instrumentation connectorand transmission wire in auto control system in wind power set system.
Reference Standards
- »»Q/LB 37
- Referring to IEC60092,GB5013,GB/T 9330.etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated voltage | U0/U 450/750V |
| Long time permisssible maximum operating temperature | 90℃ |
| Cable min. operating temperature< | -40℃ |
| Cable minimum bending radius | ≥4D (D: Cable diameter.mm) |
| Operating outside for long time, vertical hang in the air, freauently reversing | |
| it has good resistance to oil and sea water. | |
Type and Description
| Type | Description |
| FDZ-KEFR | Tinned copper conductor EPR insulation cold-proof oil-proof rubber sheath wind power Flame-retardant control flexible cable |
| FDZ-KEFRP | Tinned copper conductor EPR insulation cold-proof oil-proof rubber sheath tinned copper wire braid screen wind power flame-retardant control flexible cable |
Main property index and technical requirement
-
1, Copper Conduclor should be tinned flexible copper wire class 5 or class 6 as specified in GB/T3956. Conductor d.c. resistance at 20°C shall be in accordance with GB/T3956
-
2. Insulation shall adopt EPR basis rubber which is of great
aging resistantperformance and electrical property. Com pleted cable power shall withstand frequencysparking test: cable rated voltage 3.0kV/Smin without puncture.
-
3.Sheath shall adopt rubber which is of cold-proof, oil-proof. light aging-resisting and fiame-retardant properties with its color generally black.
-
4.Flame-retardant property shall be in accordance with GB/T18380.1.
-
5.Cable 10m impending freely will not crack after 3600 cycles reversing (1 cycle is reversing 3 cycles forward andreverse), and immersing in water for 1 hour. withstanding voltage test 3.OkV/5min without puncture.
