Port machinery Cable
内容介绍

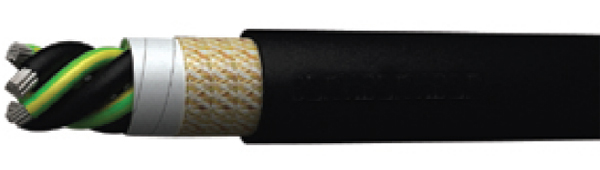

Low Voltage Reeling Cable
Application
The cable is intended for port,dock movable facilities such as fast movable cranes for container, hoisting equipment, movable large facilities, grab dredgers. mining on the ground/well bottoms and the site with high machinery stress.
Reference Standards
- »»Q/LB 55 --Design
- »»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of O/LB 55-2013. The sheath color is black and printed with manulacture name, type, specifications. voltage rating etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated voltage | 0.6/1kV |
| Long time permisssible maximum operating temperature | 90℃ |
| Cable minimum bending radius | ≥6D (D: Cable diameter.mm) |
| A.C. voltage test | 3.5kV/5min without puncture |
| The cable shall have the property of oil resistance. | |
Type and Description
| Type | Description |
| GEUR-0.6/1 | EPR insulated PUR inner sheathed kevlar braided reinforcement PUR outer sheathed port machinery cable |
| GEFR-0.6/1 | EPR insulated PCP inner sheathed kevlar braided reinforcement PCP outer sheathed port machinery cable |
Cable Specification
| Type | Specification |
| GEUR-0.6/1 | 3X25+3X6 ~ 3X240+3X50 |
| GEFR-0.6/1 | |
| Note: The specification can be added as customer required. | |
Spreader Reeling Cable
Application
The cable is intended for reeling under a higher machinery stress, movable facilities such as movable cables’s transportation and vehicles, as well as vertically reeling and mining on the ground/well bottoms.
Reference Standards
- »»Q/LB 55 --Design
- »»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of O/LB 55-2013. The sheath color is black and printed with manulacture name, type, specifications. voltage rating etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated voltage | 0.6/1kV |
| Long time permisssible maximum operating temperature | 90℃ |
| Cable minimum bending radius | ≥6D (D: Cable diameter.mm) |
| A.C. voltage test | 3.5kV/5min without puncture |
| The cable shall have the property of oil resistance. | |
Type and Description
| Type | Description |
| GJPEFR-0.6/1 | EPR insulated PCP inner sheathed kevlar braided reinforcement PCP outer sheathed port machinery cable |
Cable Specification
| Type | Specification |
| GJPEFR-0.6/1 | 24X2.5 |
| 44x2.5 | |
| 56x2.5 | |
| Note: The specification can be added as customer required. | |
Flexible Power and Control Festoon Flat Cable
Application
The cable is intended for power supply and signal transmission on port and dock with big acceleration, and suitable for movable unit and material process equipment to connecting the machine.
Reference Standards
- »»Q/LB 55 --Design
- »»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of O/LB 55-2013. The sheath color is black and printed with manulacture name, type, specifications. voltage rating etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated voltage | 0.6/1kV |
| Long time permisssible maximum operating temperature | 90℃ |
| Cable minimum bending radius | ≥6D (D: Cable diameter.mm) |
| A.C. voltage test | 2.5kV/5min without puncture |
| The cable shall have the property of oil resistance. | |
Type and Description
| Type | Description |
| GYEFBR-0.6/1 | EPR insulated elastomer inner sheathed Kevlar braided reinforcement elastomer outer sheathed port machinery flat cable |
Cable Specification
| Type | No. of core | Specification |
| GYEFBR-0.6/1 | 3 | 0.5~240 |
| 4 | 0.5~185 | |
| 5 | 0.5~120 | |
| Note: The specification can be added as customer required. | ||
Spreader Basket Cable
Application
This product is designed for the feeder lines of material receivers and terminal lifting equipment in port and harbour, particularly suitable for vertical cage applications subjected to high mechanical stress.
Reference Standards
- »»Q/LB 55 --Design
- »»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of O/LB 55-2013. The sheath color is black and printed with manulacture name, type, specifications. voltage rating etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated voltage | 0.6/1kV |
| Long time permisssible maximum operating temperature | 90℃ |
| Cable minimum bending radius | ≥6D (D: Cable diameter.mm) |
| A.C. voltage test | 3.5kV/5min without puncture |
| The cable shall have the property of oil resistance. | |
Type and Description
| Type | Description |
| GGLVUR-0.6/1 | EPR insulated PUR inner sheathed kevlar braided reinforcement PUR outer sheathed port machinery cable |
Cable Specification
| Type | Specification |
| GGLVUR-0.6/1 | 30X2.5 |
| 36X2.5 | |
| 42X2.5 | |
| 48X2.5 | |
| 54X2.5 | |
| Note: The specification can be added as customer required. | |
Port Machinery Chain Cable
Structure & Technical Index
| Constructure | Technical Index | ||
| Conductor: |
Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard |
Rated Voltage: | U0/U 0.6/1kV |
| Insulation | Special Elastomer Insulation | Test Voltage | 3500V/5min |
| Color Code | Black with Code | Min.Bending Radius | |
| Laying-up | Grouped short pitch stranding, central & interstitial tensile fillers | Fixed laying | 5×D(Cable OD) |
| Inner sheath | (If applicable) Abrasion & oil resistant PVC/PUR inner sheath | For moving installation | 10×D(Cable OD) |
| Reinforcing layer: | (If applicable)Aramid braided reinforcement layer | Maximum Tensile Force | 15N/mm² |
| Outer sheath | Abrasion & oil resistant PVC/(PUR)sheath | Max. Moving Speed | 180m/min |
| Sheath color | Yellow/Black | Operating temperature | |
| Fixed installation | -40℃ to +90℃ | ||
| Moving Installation | -30℃ to +90℃ | ||
| Flame Retardant Property | comply with IEC60332-1 | ||
| Performance Requirements | Applications | ||
|
♦Flexible, good bending, ♦tensile & tear resistance, stable performance; ♦Superior oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance, suitable for outdoor applications. |
It is used as cable for control and power transmission in drag chain systems, widely applied in port machinery drag chain systems, sensor technology, computers, mechanical control equipment and control engineering. Besides, it can also be used for handling equipment, and suitable for indoor and outdoor humid environments. | ||
| Certification |
|
||
Port Machinery Chain Shielding Cable
Structure & Technical Index
| Constructure | Technical Index | ||
| Conductor: |
Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard |
Rated Voltage: | U0/U 0.6/1kV |
| Insulation | Special Elastomer Insulation | Test Voltage | 3500V/5min |
| Color Code | Black with Code | Min.Bending Radius | |
| Laying-up | Grouped short pitch stranding, central & interstitial tensile fillers | Fixed laying | 5×D(Cable OD) |
| Inner sheath | (If applicable) Abrasion & oil resistant PVC inner sheath | For moving installation | 10×D(Cable OD) |
| Shielding layer: | Tinned copper wire braided ,density 80% | Maximum Tensile Force | 15N/mm² |
| Outer sheath | Abrasion & oil resistant PUR sheath | Max. Moving Speed | 180m/min |
| Sheath color | Yellow/Black | Operating temperature | |
| Fixed installation | -40℃ to +90℃ | ||
| Moving Installation | -30℃ to +90℃ | ||
| Flame Retardant Property | comply with IEC60332-1 | ||
| Performance Requirements | Applications | ||
|
♦Flexible, good bending, ♦tensile & tear resistance, stable performance; ♦Superior oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance, suitable for outdoor applications. |
This cable is designed for drag chain systems to transmit power and control signals. It is widely applied to port machinery drag chains, sensor technology, computers, mechanical control equipment and control engineering. In addition, it can be adopted for handling equipment and suitable for humid indoor and outdoor areas. Its overall copper braided shield guarantees accurate data transmission and protects the cable against electromagnetic interference. | ||
| Certification |
|
||
Port Machinery Chain Fiber Optic Cable
Structure & Technical Index
| Constructure | Technical Index | ||
| Fiber Optic type | 9/125,50/125 or 62.5/125 | Min.Bending Radius | |
| Insulation | Special Elastomer Insulation | Fixed laying | 5×D(Cable OD) |
| Color Code | Number Code | For moving installation | 10×D(Cable OD) |
| Laying-up | Grouped short pitch stranding, central & interstitial tensile fillers | Max. Moving Speed | 120m/min |
| Inner sheath | Abrasion & oil resistant PVC/PUR inner sheath | Operating temperature | |
| Reinforcing layer: | Aramid braided reinforcement layer | Fixed installation | -40℃ to +90℃ |
| Outer sheath | Abrasion & oil resistant PUR sheath | Moving Installation | -30℃ to +90℃ |
| Sheath color | Black | Flame Retardant Property | comply with IEC60332-1 |
| Performance Requirements | Applications | ||
|
♦Flexible, good bending, ♦tensile & tear resistance, stable performance; ♦Superior oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance, suitable for outdoor applications. |
This product is a mobile communication optical cable suitable for port equipment, used for interference-free data and signal transmission. The cable features outstanding flexibility, tensile resistance and torsion resistance. | ||
| Certification |
|
||
