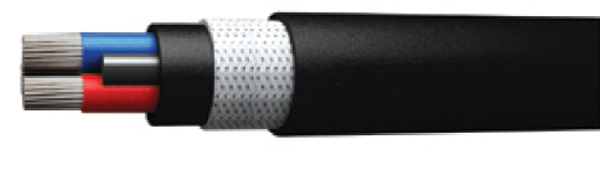

Power Cable for Offshore Oil Platform with Rated Voltage up to and including 0.6/1kV

Application

The cable is intended for electric power, lighting andgeneral control system of offshore oil platform and offshore building etc.

Reference Standards

• »»IEC 60092-353    --Design
• »»IEC 60228         --Conductor
• »»IEC 60092-351    --Insulation
• »»IEC 60092-359    --Sheath
• »»IEC 60332-3-22     --Flame Retardant
• »»IEC 600754         --Halogen Free
• »»IEC 61034         --Low Smoke

Marking

Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.5-2008.The sheath color is black and printed with manulacture name, type, specifications. voltage rating , length, date of manufacture and combustion characteristic code .

Service Property Parameter

Main Parameter	Performance Index
Rated voltage	0.6/1kV
Long time permisssible maximum operating temperature	90℃
Cable minimum bending radius	≥6D (D: Cable diameter.mm)
A.C. voltage test	3.5kV/5min without puncture

Type and Description

Type Comparison

Main technical parameter

Omit

Fire-Resisting power cable for offshore oil platform with Rated Voltage up to and including 0.6/1kV

CJPJ85/NSC 3X50

Application

The cable is intended for electric power, lighting andgeneral control system of offshore oil platform and offshore building etc. which is requested fire-resistant.

Reference Standards

• »»IEC 60092-353    --Design
• »»IEC 60228         --Conductor
• »»IEC 60092-351    --Insulation
• »»IEC 60092-359    --Sheath
• »»IEC 60332-3-22     --Flame Retardant
• »»IEC 60331         --Fire-Resistant
• »»IEC 600754         --Halogen Free
• »»IEC 61034         --Low Smoke

Marking

Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.5-2008.The sheath color is black and printed with manulacture name, type, specifications. voltage rating , length, date of manufacture and combustion characteristic code .

Service Property Parameter

Main Parameter	Performance Index
Rated voltage	0.6/1kV
Long time permisssible maximum operating temperature	90℃
Cable minimum bending radius	≥6D (D: Cable diameter.mm)
A.C. voltage test	3.5kV/5min without puncture

Type and Description

Type Comparison

Main technical parameter

Omit

Telecommunication cable for offshore oil platform with rated voltageup to and including 150/250V

CHJPZP86/SC 2X2X1.5

Application

The cable is intended for signal transmission and control system of ships, offshore oil platform telecom,computer and information processing equipment.

Reference Standards

• »»IEC 60092-376    --Design
• »»IEC 60228         --Conductor
• »»IEC 60092-351    --Insulation
• »»IEC 60092-359    --Sheath
• »»IEC 60332-3-22     --Flame Retardant
• »»IEC 600754         --Halogen Free
• »»IEC 61034         --Low Smoke

Marking

Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.4-2008.The sheath color is black and printed with manulacture name, type, specifications. voltage rating , length, date of manufacture and combustion characteristic code .

Service Property Parameter

Main Parameter	Performance Index
Rated voltage	120/250V
Long time permisssible maximum operating temperature	90℃
Cable minimum bending radius	≥6D (D: Cable diameter.mm)
A.C. voltage test	1.5kV/5min without puncture

Type and Description

Type Comparison

Main technical parameter

Omit

Fire-resistant telecommunication cable for oil platform with rated voltage up to and including 150/250V

CHEPZP96/NSC 2X2X1.5

Application

The cable is intended for signal transmission and control system of ships, offshore oil platform telecom,computer and information processing equipment which is requested fire-resistant.

Reference Standards

• »»IEC 60092-376    --Design
• »»IEC 60228         --Conductor
• »»IEC 60092-351    --Insulation
• »»IEC 60092-359    --Sheath
• »»IEC 60332-3-22     --Flame Retardant
• »»IEC 60331         --Fire-Resistant
• »»IEC 600754         --Halogen Free
• »»IEC 61034         --Low Smoke

Marking

Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.4-2008.The sheath color is black and printed with manulacture name, type, specifications. voltage rating , length, date of manufacture and combustion characteristic code .

Service Property Parameter

Main Parameter	Performance Index
Rated voltage	150/250V
Long time permisssible maximum operating temperature	90℃
Cable minimum bending radius	≥6D (D: Cable diameter.mm)
A.C. voltage test	1.5kV/5min without puncture

Type and Description

Type Comparison

Main technical parameter

Omit

XLPE insulated power cable for offshore oil platform with rated voltage from 3.6/6 to 18/30kV

CJPJ95/SC 3X120

Application

The cable is intended for power transmission of various ships, offshore oil platform and offshore building.

Reference Standards

• »»IEC 60092-354    --Design
• »»IEC 60228         --Conductor
• »»IEC 60092-351    --Insulation
• »»IEC 60092-359    --Sheath
• »»IEC 60332-3-22     --Flame Retardant
• »»IEC 600754         --Halogen Free
• »»IEC 61034         --Low Smoke

Marking

Insulation shall be recognized by colored tape andcomply with the stipulation of GB/T6995.5. It is allowed, in necessary, to use other methods.
The sheath color is red and printed with manufactures, name, type, specification, voltage, length, etc

Service Property Parameter

Main Parameter	Performance Index
Rated voltage	3.6/6~18/30kV
Long time permisssible maximum operating temperature	90℃
Cable minimum bending radius Single Core Cable Three Core Cable	≥12D (D: Cable diameter.mm) 6D (D: Cable diameter.mm)
A.C. voltage test	3.5kV/5min without puncture
Partial discharge capacity under 1.73U0 test voltage	≤10pC

Type and Description

Cable Specification

Main technical parameter

Omit

EPR insulated power cable for offshore oil platform with rated voltage from 3.6/6 to 18/30kV

CEP96/SC 3X120

Application

The cable is intended for power transmission of various ships, offshore oil platform and offshore building.

Reference Standards

• »»IEC 60092-354    --Design
• »»IEC 60228         --Conductor
• »»IEC 60092-351    --Insulation
• »»IEC 60092-359    --Sheath
• »»IEC 60332-3-22     --Flame Retardant
• »»IEC 600754         --Halogen Free
• »»IEC 61034         --Low Smoke

Marking

Insulation shall be recognized by colored tape and comply with the stipulation of GB/T6995.5. It is allowed, in necessary, to use other methods.
The sheath color is red and printed with manufactures, name, type, specification, voltage, length, etc

Service Property Parameter

Main Parameter	Performance Index
Rated voltage	3.6/6~18/30kV
Long time permisssible maximum operating temperature	90℃
Cable minimum bending radius Single Core Cable Three Core Cable	≥12D (D: Cable diameter.mm) 6D (D: Cable diameter.mm)
A.C. voltage test	3.5kV/5min without puncture
Partial discharge capacity under 1.73U0 test voltage	≤10pC

Type and Description

Cable Specification

PS: Letter Code Meaning

电缆系列代号 Code for series	船用电力电缆	C	Shipboard power cable
	船用通信电缆	CH	Shipboard telecommunication cable
	船用控制电缆	CK	Shipboard control cable
	船用电线	CB	Shipboard electrical wire
绝缘代号 Code for insulation	乙丙橡胶绝缘	E	EPR
	交联聚乙烯绝缘	J or YJ	XLPE
	硅橡胶绝缘	S	Silicon rubber
护套代号 Code for sheath	氯丁橡胶护套	F	PCP
	氯磺化聚乙烯护套	H	CSP
	聚氯乙烯护套	V	PVC
	硅橡胶护套	S	Silicon rubber
	交联聚烯烃护套	PJ	Cross-linked PO (SHF2)
	热塑性聚烯烃护套	P	PO (SHF1)
铠装代号及外套代号 Code for armor and outer sheath	镀锡铜丝编织	8	Tinned copper wire braid
	镀锌钢丝编织	9	Galvanized steel wire braid
	无外护套	0	No outer sheath
	聚氯乙烯护套	2	PVC outer sheath
	硅橡胶护套	4	Silicon rubber outer sheath
	交联聚烯烃护套	5	Cross-linked PO outer sheath
	热塑性聚烯烃护套	6	PO outer sheath
其它结构代号 Code for other construction	导电线芯为软结构	R	Flexible conductor with construction
	绝缘线芯或线对屏蔽	P	Wire or twisted pair with individual screen
燃烧特性代号 Code for flammability	单根阻燃	DA	Single cable flame-retardant (IEC60332-1)
	成束阻燃	SA	Bunched cables flame-retardant (IEC60332-3A)
	成束阻燃、低烟、无卤、低毒	SC	Bunched cables flame-re
