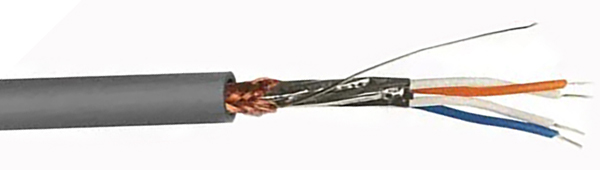

BMS Cable

Index> Control Cable >BMS Cable

EIA RS485

Application

For data communication and automation systems, microprocessor to device, etc.

Constructions

1. Conductor: Stranded Tinned Copper Wire
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire<
Tinned Copper Wire Braided Screen
Al-PET Tape & Tinned Copper Braided
5. Bedding for Armoured Cable (Where Applicable):
Polyethylene (PE)
PVC
6. Armour (Where Applicable): Galvanized Steel Wire
7. Oversheath: PVC/LSZH

»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C

Reference Standards

»» TIA/EIA-485
»» BS EN 50288-7
»» BS EN 60228
»» BS EN 50290

Identification of Insulation

1P	White，Blue	3P	White ,Green
2P	White ,Yellow	4P	White,Brown
Note :Other cores are available upon request

Electrical Performance

Working Voltage	300V
Characteristic Impedance	120 Ω ± 15 Ω
Velocity of Propagation	S-FPE: 78%, SPE: 66%
Conductor DCR	57.0 Ω/km (Max. @ 20°C) for 22AWG
Conductor DCR	91.80 Ω/km (Max. @ 20°C) for 24AWG

Part No.	Conductor Construction		Insulation	Screen	Sheath
Part No.	Material	Size	Insulation	Screen	Sheath
LB9841	TC	1x2x24AWG	S-PE	Al-foil + Braid	PVC
LB9842	TC	2x2x24AWG	S-PE	Al-foil + Braid	PVC
LB9843	TC	3x2x24AWG	S-PE	Al-foil + Braid	PVC
LB9844	TC	4x2x24AWG	S-PE	Al-foil + Braid	PVC
LB9841NH	TC	1x2x24AWG	S-PE	Al-foil + Braid	LSZH
LB9842NH	TC	2x2x24AWG	S-PE	Al-foil + Braid	LSZH
LB9843NH	TC	3x2x24AWG	S-PE	Al-foil + Braid	LSZH
LB9844NH	TC	4x2x24AWG	S-PE	Al-foil + Braid	LSZH
LB3105A	TC	1x2x22AWG	S-FPE	Al-foil + Braid	PVC
LB3107A	TC	2x2x22AWG	S-FPE	Al-foil + Braid	PVC
LB3108A	TC	3x2x22AWG	S-FPE	Al-foil + Braid	PVC
LB3109A	TC	4x2x22AWG	S-FPE	Al-foil + Braid	PVC

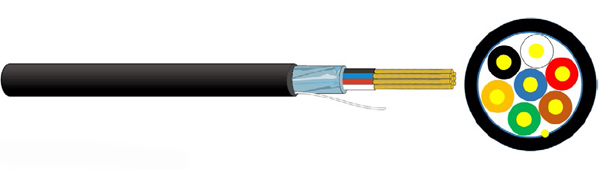

RS-232 Cable (Multi-Core, Foil Screened)

Application

For low data rate transmission as audio, control and instrumentation cables.

Reference Standards

ANSI/TIA/EIA-232
UL2464
BS EN 60228
BS EN 50290
RoHS Directives

Constructions

1. Conductor: Stranded Tinned Copper Wire

2. Insulation: PVC, Polyolefin

3. Cabling: Cores, Twist Pairs laying-up

4. Screened:Al-PET tape with Tinned Copper Drain Wire

5. Sheath: PVC/LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 65ºC

Identification of Insulation

1 Core Black 9 Core Green/Black

2 Core White 10 Core Orange/Black

3 Core Red 11 Core Blue/Black

4 Core Green 12 Core Black/White

5 Core Orange 13 Core Red/White

6 Corer Blue 14 Corer Green/White

7 Core White/Black 15 Core Blue/White

8 Core Red/Black

Working Voltage 300V

Test Voltage 800V

Conductor DCR 91.80 Ω/km (Max. @ 20°C)

Part No. Conductor Construction Insulation Screen Sheath

Material Size

LB9533 TC 3x24AWG PVC Al-foil PVC

LB9534 TC 4x24AWG PVC Al-foil PVC

LB9535 TC 5x24AWG PVC Al-foil PVC

LB9536 TC 6x24AWG PVC Al-foil PVC

LB9537 TC 7x24AWG PVC Al-foil PVC

LB9538 TC 8x24AWG PVC Al-foil PVC

LB9539 TC 9x24AWG PVC Al-foil PVC

LB9540 TC 10x24AWG PVC Al-foil PVC

LB9541 TC 15x24AWG PVC Al-foil PVC

LB9534NH TC 4x24AWG S-PE Al-foil LSZH

LB9536NH TC 6x24AWG S-PE Al-foil LSZH

(Notes: Other cores are available upon request.)

1 Core	Black	9 Core	Green/Black
2 Core	White	10 Core	Orange/Black
3 Core	Red	11 Core	Blue/Black
4 Core	Green	12 Core	Black/White
5 Core	Orange	13 Core	Red/White
6 Corer	Blue	14 Corer	Green/White
7 Core	White/Black	15 Core	Blue/White
8 Core	Red/Black

Part No.	Conductor Construction	Insulation	Screen	Sheath
Material	Size
LB9533	TC	3x24AWG	PVC	Al-foil	PVC
LB9534	TC	4x24AWG	PVC	Al-foil	PVC
LB9535	TC	5x24AWG	PVC	Al-foil	PVC
LB9536	TC	6x24AWG	PVC	Al-foil	PVC
LB9537	TC	7x24AWG	PVC	Al-foil	PVC
LB9538	TC	8x24AWG	PVC	Al-foil	PVC
LB9539	TC	9x24AWG	PVC	Al-foil	PVC
LB9540	TC	10x24AWG	PVC	Al-foil	PVC
LB9541	TC	15x24AWG	PVC	Al-foil	PVC
LB9534NH	TC	4x24AWG	S-PE	Al-foil	LSZH
LB9536NH	TC	6x24AWG	S-PE	Al-foil	LSZH
(Notes: Other cores are available upon request.)

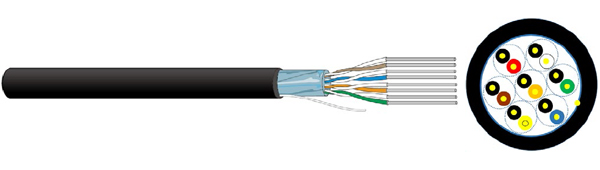

RS-232 Cable (Multi-Pair, Foil Screened )

Application

For low data rate transmission as audio, control and instrumentation cables.

Reference Standards

ANSI/TIA/EIA-232
UL2464
BS EN 60228
BS EN 50290
RoHS Directives

Constructions

1. Conductor: Stranded Tinned Copper Wire

2. Insulation: PVC, Polyolefin

3. Cabling: Cores, Twist Pairs laying-up

4. Screened: Al-PET Tape & Tinned Copper Braided

5. Sheath: PVC/LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 65ºC

Identification of Insulation

1st Pair Black, Red 6th Pair Black, Brown

2nd Pair Black, White 7th Pair Black, Orange

3rd Pair Black, Green 8th Pair Red, White

4th Pair Black, Blue 9th Pair Red, Green

5th Pair Black, Yellow 10th Pair Red, Blue

Electrical Performance

Working Voltage 150V

Test Voltage 800V

Conductor DCR 91.80 Ω/km (Max. @ 20°C)

Part No. Conductor Construction Insulation Screen Sheath

Material Size

LB9501 TC 1x2x24AWG PVC Al-foil PVC

LB9502 TC 2x2x24AWG PVC Al-foil PVC

LB9530 TC 3x2x24AWG PVC Al-foil PVC

LB9504 TC 4x2x24AWG PVC Al-foil PVC

LB9550 TC 5x2x24AWG PVC Al-foil PVC

LB9560 TC 6x2x24AWG PVC Al-foil PVC

LB9570 TC 7x2x24AWG PVC Al-foil PVC

LB9580 TC 8x2x24AWG PVC Al-foil PVC

LB9590 TC 9x2x24AWG PVC Al-foil PVC

LB9510 TC 10x2x24AWG PVC Al-foil PVC

LB9520 TC 15x2x24AWG PVC Al-foil PVC

LB9530NH TC 1x2x24AWG S-PE Al-foil LSZH

LB9540NH TC 2x2x24AWG S-PE Al-foil LSZH

LB9550NH TC 3x2x24AWG S-PE Al-foil LSZH

LB9560NH TC 4x2x24AWG S-PE Al-foil LSZH

LB9570NH TC 5x2x24AWG S-PE Al-foil LSZH

LB9580NH TC 6x2x24AWG S-PE Al-foil LSZH

LB9590NH TC 7x2x24AWG S-PE Al-foil LSZH

LB9510NH TC 8x2x24AWG S-PE Al-foil LSZH

(Notes: Other cores are available upon request.)

1st Pair	Black, Red	6th Pair	Black, Brown
2nd Pair	Black, White	7th Pair	Black, Orange
3rd Pair	Black, Green	8th Pair	Red, White
4th Pair	Black, Blue	9th Pair	Red, Green
5th Pair	Black, Yellow	10th Pair	Red, Blue

Working Voltage	150V
Test Voltage	800V
Conductor DCR	91.80 Ω/km (Max. @ 20°C)

Part No.	Conductor Construction	Insulation	Screen	Sheath
Material	Size
LB9501	TC	1x2x24AWG	PVC	Al-foil	PVC
LB9502	TC	2x2x24AWG	PVC	Al-foil	PVC
LB9530	TC	3x2x24AWG	PVC	Al-foil	PVC
LB9504	TC	4x2x24AWG	PVC	Al-foil	PVC
LB9550	TC	5x2x24AWG	PVC	Al-foil	PVC
LB9560	TC	6x2x24AWG	PVC	Al-foil	PVC
LB9570	TC	7x2x24AWG	PVC	Al-foil	PVC
LB9580	TC	8x2x24AWG	PVC	Al-foil	PVC
LB9590	TC	9x2x24AWG	PVC	Al-foil	PVC
LB9510	TC	10x2x24AWG	PVC	Al-foil	PVC
LB9520	TC	15x2x24AWG	PVC	Al-foil	PVC
LB9530NH	TC	1x2x24AWG	S-PE	Al-foil	LSZH
LB9540NH	TC	2x2x24AWG	S-PE	Al-foil	LSZH
LB9550NH	TC	3x2x24AWG	S-PE	Al-foil	LSZH
LB9560NH	TC	4x2x24AWG	S-PE	Al-foil	LSZH
LB9570NH	TC	5x2x24AWG	S-PE	Al-foil	LSZH
LB9580NH	TC	6x2x24AWG	S-PE	Al-foil	LSZH
LB9590NH	TC	7x2x24AWG	S-PE	Al-foil	LSZH
LB9510NH	TC	8x2x24AWG	S-PE	Al-foil	LSZH
(Notes: Other cores are available upon request.)

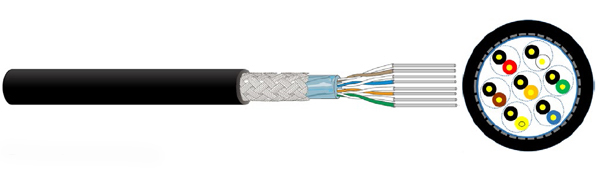

RS-232 Cable (Multi-Pair, Foil & Braid Screened)

Application

For EIA RS-232 and CAD/CAM applications, used as computer cables.

Reference Standards

UL 2464

BS EN 60228

BS EN 50290

RoHS Directive

<
Constructions

1. Conductor: Stranded Tinned Copper Wire

2. Insulation: S-PE, S-FPE

3. Cabling: Twist Pairs laying-up

4. Screened: Individually Screened (Optional)

Al-PET tape with Tinned Copper Drain Wire

Al-PET Tape & Tinned Copper Braided

5. Sheath: PVC/LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 65ºC

Identification of Insulation

1st Pair Black, Red 9th Pair Red, Green

2nd Pair Black, White 10th Pair Red, Blue

3rd Pair Black, Green 11th Pair Red, Yellow

4th Pair Black, Blue 12th Pair Red, Brown

5th Pair Black, Yellow 13th Pair Red, Orange

6th Pair Black, Brown 14th Pair Green, White

7th Pair Black, Orange 15th Pair Green, Blue

8th Pair Red, White

Electrical Performance

Operating Voltage 300V

Test Voltage 1.0 KVdc

Conductor DCR

57.0 Ω/km (Max. @ 20°C) for 22AWG

91.8 Ω/km (Max. @ 20°C) for 24AWG

Part No. Conductor Construction Insulation Screen Sheath

Material Size

LB8302 TC 2x2x22AWG PVC Al-foil + Braid PVC

LB8303 TC 3x2x22AWG PVC Al-foil + Braid PVC

LB8304 TC 4x2x22AWG PVC Al-foil + Braid PVC

LB8305 TC 5x2x22AWG PVC Al-foil + Braid PVC

LB8306 TC 6x2x22AWG PVC Al-foil + Braid PVC

LB8307 TC 7x2x22AWG PVC Al-foil + Braid PVC

LB8308 TC 8x2x22AWG PVC Al-foil + Braid PVC

LB8310 TC 10x2x22AWG PVC Al-foil + Braid PVC

LB8332 TC 2x2x24AWG PVC Al-foil + Braid PVC

LB8333 TC 3x2x24AWG PVC Al-foil + Braid PVC

LB8334 TC 4x2x24AWG PVC Al-foil + Braid PVC

LB8335 TC 5x2x24AWG PVC Al-foil + Braid PVC

LB8336 TC 6x2x24AWG PVC Al-foil + Braid PVC

LB8337 TC 7x2x24AWG PVC Al-foil + Braid PVC

LB8340 TC 10x2x24AWG PVC Al-foil + Braid PVC

(Notes: Other cores are available upon request.)

1st Pair	Black, Red	9th Pair	Red, Green
2nd Pair	Black, White	10th Pair	Red, Blue
3rd Pair	Black, Green	11th Pair	Red, Yellow
4th Pair	Black, Blue	12th Pair	Red, Brown
5th Pair	Black, Yellow	13th Pair	Red, Orange
6th Pair	Black, Brown	14th Pair	Green, White
7th Pair	Black, Orange	15th Pair	Green, Blue
8th Pair	Red, White

Operating Voltage	300V
Test Voltage	1.0 KVdc
Conductor DCR	57.0 Ω/km (Max. @ 20°C) for 22AWG 91.8 Ω/km (Max. @ 20°C) for 24AWG

Part No.	Conductor Construction	Insulation	Screen	Sheath
Material	Size
LB8302	TC	2x2x22AWG	PVC	Al-foil + Braid	PVC
LB8303	TC	3x2x22AWG	PVC	Al-foil + Braid	PVC
LB8304	TC	4x2x22AWG	PVC	Al-foil + Braid	PVC
LB8305	TC	5x2x22AWG	PVC	Al-foil + Braid	PVC
LB8306	TC	6x2x22AWG	PVC	Al-foil + Braid	PVC
LB8307	TC	7x2x22AWG	PVC	Al-foil + Braid	PVC
LB8308	TC	8x2x22AWG	PVC	Al-foil + Braid	PVC
LB8310	TC	10x2x22AWG	PVC	Al-foil + Braid	PVC
LB8332	TC	2x2x24AWG	PVC	Al-foil + Braid	PVC
LB8333	TC	3x2x24AWG	PVC	Al-foil + Braid	PVC
LB8334	TC	4x2x24AWG	PVC	Al-foil + Braid	PVC
LB8335	TC	5x2x24AWG	PVC	Al-foil + Braid	PVC
LB8336	TC	6x2x24AWG	PVC	Al-foil + Braid	PVC
LB8337	TC	7x2x24AWG	PVC	Al-foil + Braid	PVC
LB8340	TC	10x2x24AWG	PVC	Al-foil + Braid	PVC
(Notes: Other cores are available upon request.)

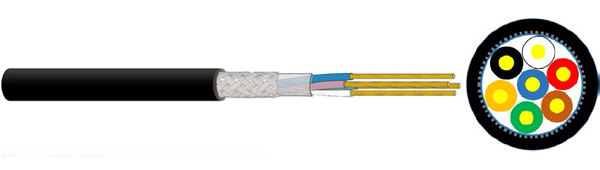

RS-232 Cable (Multi-Core, Foil &Braid Screened)

Application

For low data rate transmission as audio, control and instrumentation cables.

Reference Standards

ANSI/TIA/EIA-232
UL2464
BS EN 60228
BS EN 50290
RoHS Directives

Constructions

1. Conductor: Stranded Tinned Copper Wire

2. Insulation: PVC

3. Cabling: Cores, Twist Pairs laying-up

4. Screened: Al-PET Tape & Tinned Copper Braided

5. Sheath: PVC/LSZH<

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 65ºC

Identification of Insulation

1 Core Black 6 Corer Blue

2 Core White 7 Core White/Black

3 Core Red 8 Core Red/Black

4 Core Green 9 Core Green/Black

5 Core Orange 10 Core< Orange/Black

Electrical Performance

Working Voltage 150V

Test Voltage 800V

Conductor DCR 91.80 Ω/km (Max. @ 20°C)

1 Core	Black	6 Corer	Blue
2 Core	White	7 Core	White/Black
3 Core	Red	8 Core	Red/Black
4 Core	Green	9 Core	Green/Black
5 Core	Orange	10 Core<	Orange/Black

Working Voltage	150V
Test Voltage	800V
Conductor DCR	91.80 Ω/km (Max. @ 20°C)

For more details to following type &specification,Please browse the entire webpage on desktop computer.

RS-232/422 Cable
RS-422 Cable
Audio Cable (Analog)
Audio Cable (Digital)
Speaker Cable
Audio, Control and Instrumentation Cables (Multi-Core, Unscreened)
Audio, Control and Instrumentation Cables (Multi-Pair, Unscreened)
Audio, Control and Instrumentation Cables (Multi-Core, Screened)
Audio, Control and Instrumentation Cables (Multi-Pair,Screened)
Audio, Control and InstrumentationCables (Special)
Security And Alarm Cablo (Screened)
Security &Commercial Audio System (Screened)
Security &Commercial Audio System (Unscreened)
Computer,instrumentation and Medical Electronics Cable

PreviousPage Next Page

BMS Cable

BMS Cable

内容介绍

Application

Constructions

Reference Standards

Electrical Performance

Application

Reference Standards

Constructions

Identification of Insulation

Application

Reference Standards

Constructions

Identification of Insulation

Electrical Performance

Application

Reference Standards

Constructions

Identification of Insulation

Electrical Performance

Application

Reference Standards

Constructions

Identification of Insulation

Electrical Performance

0 person contacting us now

Contact Information
