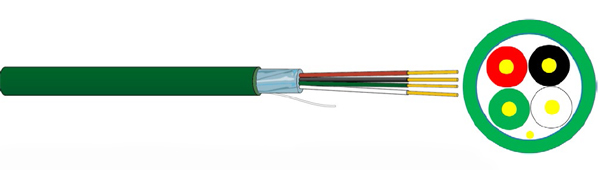

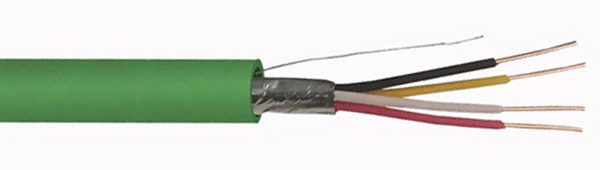

Application

For use in KNX system, formely know as EIB, application to lighting, heating or ventilation in pipe, dry, moist and wet areas.

Reference Standards

• »»BS EN 50090
• »»BS EN 60228
• »»BS EN 50290
• »»RoHS Directives
• »»IEC60332-1

Electrical Performance

Mechanical Characteristics

Cable Construction

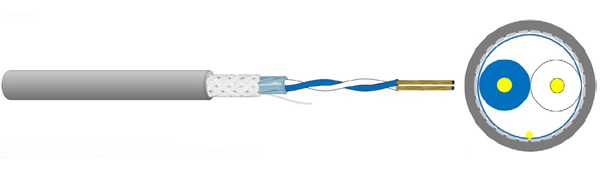

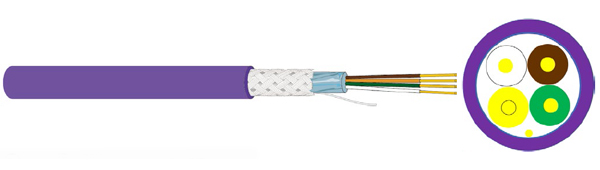

CAN Bus Cable

Application

CAN Bus (Control Area Network) is a non addressable system for fast changing needs of automation industry.

Reference Standards

• BS EN 60228
• BS EN 50290
• RoHS Directives

• IEC60332-1


Constructions

• 1. Conductor: Stranded Oxygen Free Copper
• 2. Insulation: S-FPE
• 3. Identification:
• 1 Pair: White, Brown
• 1 Quad: White, Brown, Green, Yellow
• 4. Wrapping Polyester Tape
• 5. Screened:Tinned Copper Wire Braided
• 6. Sheath: PVC/LSZH
• 7. Sheath: Violet

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	250V
Test Voltage	1.5KV
Characteristic Impedance	120 Ω ± 10 Ω @ 1MHz
Conductor DCR	89.50 Ω/km (Max. @ 20°C) for 24AWG
	56.10 Ω/km (Max. @ 20°C) for 22AWG
	39.0 Ω/km (Max. @ 20°C) for 20AWG
Insulation Resistance	500 MΩhms/km (Min.)
Mutual Capacitance	40 nF/Km @ 800Hz

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
1x2x24AWG	7/0.20	0.5	0.8	TC Braided	5.4
1x4x24AWG	7/0.20	0.5	1.0	TC Braided	6.5
1x2x22AWG	7/0.25	0.6	0.9	TC Braided	6.4
1x4x22AWG	7/0.25	0.8	1.0	TC Braided	7.5
1x2x20AWG	7/0.30	0.6	1.0	TC Braided	6.8
1x4x20AWG	7/0.30	0.6	1.1	TC Braided	7.9

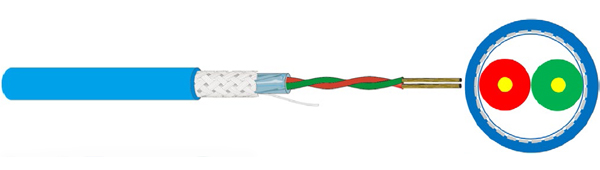

PROFIBUS PA Cable

Application

For the connection of control systems to field instruments on process automation applications.

Reference Standards

• »BS EN/IEC 61158
• »IEC60332-1
• »BS EN 60228
• »BS EN 50290
• »RoHS Directives


Constructions

• 1. Solid Oxygen Free Copper (Class 1)
• 2. Insulation: S-PE
• 3. Identification: Red, Green
• 4.Filler: Halogen Free Compound
• 5. Screened:Tinned Copper Wire Braided
• 1.Aluminium/Polyester Tape
• 2.Tinned Copper Wire Braided (60%)
• 6. Sheath: PVC/LSZH
• 7. Sheath: Blue

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	300V
Test Voltage	2.5KV
Characteristic Impedance	100 Ω ± 10 Ω @ 1MHz
Conductor DCR	22.80 Ω/km (Max. @ 20°C)
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	60 nF/Km @ 800Hz

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
LB-PROFIBUS PA	1x2x18AWG	1/1.0	1.2	1.0	AL-Foil + TC Braided	7.5
LB70001E	1x2x18AWG	16/0.25	1.2	1.1	AL-Foil + TC Braided	8
LB70110E	1x2x18AWG	16/0.25	1.2	1.0	AL-Foil + TC Braided	7.8

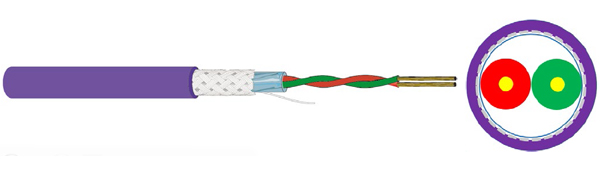

PROFIBUS DP Cable

Application

For deliver time-critical communication between process automation systems and distributed peripherals. This cable is usually referred as S iemens profibus.

Reference Standards

• »BS EN/IEC 61158
• »BS EN 60228
• » BS EN 50290
• » EC60332-1
• » RoHS Directive

Constructions

• 1.Conductor: Solid Oxygen Free Copper (Class 1)
• 2. Insulation: S-FPE
• 3.Identification: Red, Green
• 4.Bedding: PVC
• 5.Screen
• 1.Aluminium/Polyester Tape
• 2.Tinned Copper Wire Braided (60%)
• 6. Sheath: PVC/LSZH/PE
• 7. Sheath: Violet

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Operating Voltage	350V
Test Voltage	1.5 KV
Characteristic Impedance	150 Ω ± 15 Ω @ 1MHz
Conductor DCR	57.1 Ω/km (Max. @ 20°C)
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	30 nF/Km @ 800Hz

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
LB3079A	1x2x22AWG	1/0.64	0.9	1.0	AL-Foil + TC Braided	8.0
LB3079ANH	1x2x22AWG	1/0.64	0.9	1.0	AL-Foil + TC Braided	8.0
LB3079E	1x2x22AWG	7/0.25	0.9	1.0	AL-Foil + TC Braided	8.0
LB70101E	1x2x22AWG	1/0.64	0.9	1.0	AL-Foil + TC Braided	8.0
LB70101NH	1x2x22AWG	1/0.64	0.9	1.0	AL-Foil + TC Braided	8.0
LB70102E	1x2x22AWG	7/0.25	0.9	1.0	AL-Foil + TC Braided	8.0
LB70103E	1x2x22AWG	1/0.64	0.9	1.0	AL-Foil + TC Braided	8.4

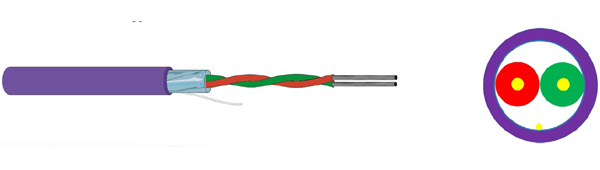

Foundation Fieldbus Type A Cable 22AWG

Application

For process control automation industry and quick connection of the cable to the respective plugs in the field area

Reference Standards

• »BS EN/IEC 61158
• »BS EN 60228
• »BS EN 50290
• »RoHS Directives

• »IEC60332-1

Constructions

• 1.Conductor: Stranded Oxygen Free Copper
• 2. Insulation: S-FPE
• 3. Identification: Red, Green
• 4. Bedding: PVC
• 5. Screen:
• 1.Aluminium/Polyester Tape
• 2.Tinned Copper Wire Braided (60%)
• 6. Sheath: PVC/LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 60ºC

Electrical Performance

Working Voltage	300V
Test Voltage	1.5 KV
Characteristic Impedance	150 Ω ± 15 Ω @ 1MHz
Conductor DCR	57.1 Ω/km (Max. @ 20°C)
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	35 nF/Km @ 800Hz

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
1x2x22AWG	7/0.25	0.7	1.0	AL-Foil + TC Braided	8.1

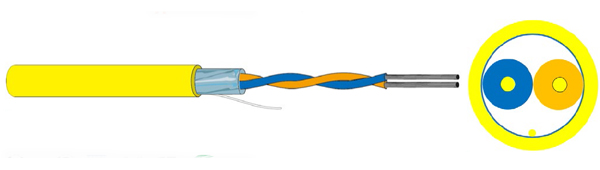

Foundation Fieldbus Type A Cable 18~14AWG

Application

For process control automation industry and quick connection of the cable to the respective plugs in the field area

Reference Standards

• »BS EN/IEC 61158
• »BS EN 60228
• »BS EN 50363
• »RoHS Directives

• »IEC60332-1

Constructions

• 1.Conductor: Stranded Tinned Copper Wire
• 2. Insulation: Polyolefin
• 3. Identification: Blue, Orange
• 4. Screen: Individual & Overall Screen
• 5. Sheath: PVC/LSZH
• 6. Sheath: Yellow

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	300V
Test Voltage	1.5 KV
Conductor DCR	21.5 Ω/km (Max. @ 20°C) for 18AWG
	13.8 Ω/km (Max. @ 20°C) for 16AWG
	8.2 Ω/km (Max. @ 20°C) for 14AWG
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	79 nF/m
Velocity of Propagation	66%

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
LB3076F	1x2x18AWG	19/0.25	0.5	0.8	AL-Foil	6.3
LB1327A	2x2x18AWG	19/0.25	0.5	1.0	AL-Foil	11.2
LB1328A	5x2x18AWG	19/0.25	0.5	1.2	AL-Foil	13.7
LB1360A	1x2x16AWG	30/0.25	0.9	1.0	AL-Foil	9.0
LB1361A	2x2x16AWG	30/0.25	0.9	1.2	AL-Foil	14.7
LB1334A	1x2x18AWG	19/0.25	0.5	1.0	AL-Foil + TC Braided	7.3
LB1335A	1x2x16AWG	30/0.25	0.9	1.0	AL-Foil + TC Braided	9.8
LB1336A	1x2x14AWG	49/0.25	1.0	1.0	AL-Foil + TC Braided	10.9

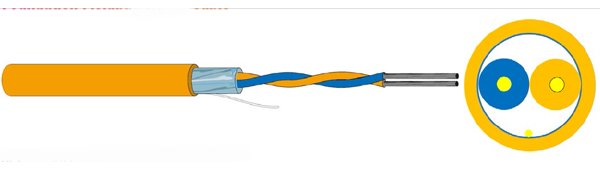

Foundation Fieldbus Type B Cable

Application

For process control automation industry and quick connection of the cable to the respective plugs in the field area.

Reference Standards

• »BS EN/IEC 61158
• »BS EN 60228
• »BS EN 50290
• »RoHS Directive
• »IEC60332-1

Constructions

• 1. Conductor: Stranded Tinned Copper Wire

• 2. Insulation: S-FPE

• 3.Identification: White, Black

• 4.Bedding: PVC

• 5. Screened: Aluminium/Polyester Tape

• 6. Sheath: PVC/LSZH

• 7. Sheath: Orange


>> Insulation cores are in blue and white color with number printed.
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	300V
Test Voltage	1.5 KV
Characteristic Impedance	100 Ω ± 15 Ω @ 1MHz
Conductor DCR	56.5 Ω/km (Max. @ 20°C)
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	35 nF/Km @ 800Hz

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
LB3078F	1x2x22AWG	7/0.25	1	1.2	AL-Foil	8.0

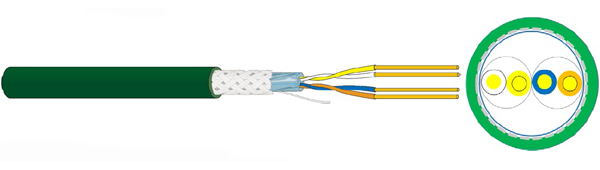

PROFINET Cable Type A

Application

For reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions.

Reference Standards

• »BS EN/IEC 61158
• »BS EN 60228
• »BS EN 50290
• »RoHS Directive
• »IEC60332-1

Constructions

• 1.Conductor: Solid Oxygen Free Copper (Class 1)

• 2. Insulation: S-PE

• 3.Identification: White, Yellow, Blue, Orange

• 4.Cabling: Star Quad

• 5.Inner Sheath: PVC/LSZH

• 6. Screened:

• 1,Aluminium/Polyester Tape

• 2. Tinned Copper Wire Braided (60%)

• 7. Outer Sheath: PVC/LSZH

• 8. Sheath: Green


>> Insulation cores are in blue and white color with number printed.
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	300V
Test Voltage	1.5 KV
Characteristic Impedance	100 Ω ± 15 Ω @ 1MHz
Conductor DCR	57.0 Ω/km (Max. @ 20°C)
Insulation Resistance	500 MΩhms/km (Min.)
Mutual Capacitance	50 nF/Km

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
1x2x22AWG	7/0.25	0.7	1.0	AL-Foil+TC Braided	8.1

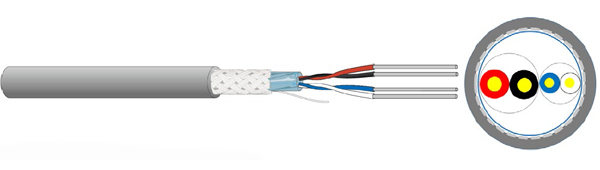

DeviceNet Cable

Application

For interconnection various industrial devices, such as SPS controls or limit switches, integrated with a power supply pair and a data pair together.

Reference Standards

• »BS EN/IEC 61158
• »BS EN 60228
• »BS EN 50290
• »RoHS Directives

• »IEC60332-1

Constructions

• 1.Conductor: Stranded Tinned Copper Wire
• 2. Insulation: PVC,SPE,S-FPE
• 3. Identification: Blue, Orange
• Data: White, Blue
• Power: Red, Black
• 4. Cabling: Twisted Pair Laying-up
• 5. Screen:
• 1.Aluminium/Polyester Tape
• 2.Tinned Copper Wire Braided (60%)
• 6. Sheath: PVC/LSZH
• 7. Sheath: Violet/Grey/Yellow

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	300V
Test Voltage	1.5 KV
Characteristic Impedance	120 Ω ± 10 Ω @ 1MHz
Conductor DCR	92.0 Ω/km (Max. @ 20°C) for 24AWG
	57.0Ω/km (Max. @ 20°C) for 22AWG
	23.2 Ω/km (Max. @ 20°C) for 18AWG
	11.3 Ω/km (Max. @ 20°C) for 15AWG
Insulation Resistance	500 MΩhms/km (Min.)
Mutual Capacitance	40 nF/m

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
LB3084A	1x2x22AWG+1X2X24AWG	7/0.20	0.5	1.0	AL-Foil+TC Braided	7.0
		7/0.25	0.5
LB3082A	1x2x15AWG+1X218AWG	19/0.25	0.6	1.5	AL-Foil+TC Braided	12.2
		37/0.25	0.6
LB7895A	1x2x18AWG+1x2x20AWG	19/0.25	0.6	1.2	AL-Foil+TC Braided	9.8
		19/0.20	0.6

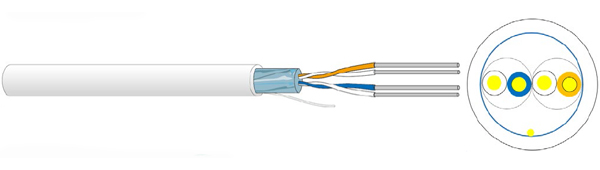

LonWorks Cable

Application

For data transmission to instrumentation and automation signal.

Reference Standards

• »EN 50090
• »BS EN 60228
• »BS EN 50290
• »RoHS Directive
• »IEC60332-1

Constructions

• 1.Conductor: Solid Oxygen Free Copper

• 2. Insulation: S-PE,S-FPE

• 3.Identification: Pair
• 1: White, Blue Pair
• 2: White, Orange

• 4.Twisted Pair

• 5.Screen: Aluminium/Polyester Tape

• 6. Outer Sheath: LSZH

• 7. Sheath: White


>> Insulation cores are in blue and white color with number printed.
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Working Voltage	300V
Test Voltage	1.5 KV
Characteristic Impedance	100 Ω ± 10 Ω @ 1~20MHz
Conductor DCR	57.0 Ω/km (Max. @ 20°C)
Insulation Resistance	500 MΩhms/km (Min.)
Mutual Capacitance	50 nF/Km

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
LB7701NH	1x2x22AWG	1/0.64	0.3	0.6	/	3.6
LB7702NH	2x2x22AWG	1/0.64	0.3	0.6	/	5.5
LB7703NH	1x2x22AWG	1/0.64	0.45	0.6	Al-foil	4.4
LB7704NH	2x2x22AWG	1/0.64	0.45	0.6	Al-foil	6.6
