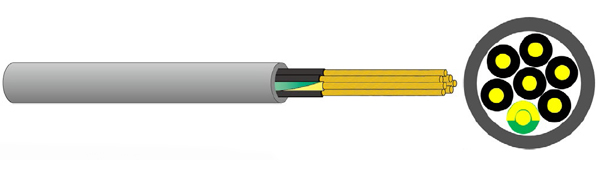

YY Cable PVC/LSZH

Application

For interconnecting cables within industrial process automation applications, including signal transmission, measurement, control and regulation.



»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 70°C

Reference Standards

  • »»BS EN 50090
  • »»BS 6500
  • »»BS EN 60228/li>
  • »»BS EN 50525-2-11
  • »»BS EN 50363-3
  • »»BS EN 50363-7
  • »»BS EN 50363-4-1
  • »»BS EN 50363-8
  • »»RoHS Directives
  • »»IEC60332-1

Constructions

  • 1.Conductor: Class 5 Oxygen Free Copper
  • 2.Insulation: PVC/LSZH
  • 3.Identification:
  • Black Cores with White Number
  • 1pc Green/Yellow Core
  • 4.Sheath: PVC/LSZH (Grey)

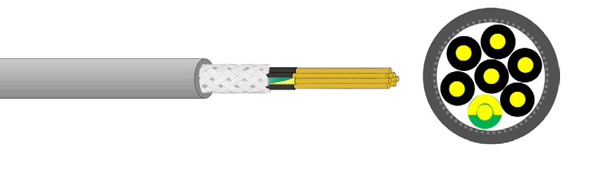

CY Cable PVC/LSZH

Application

For interconnecting cables within industrial process automation applications, including signal transmission, measurement, control and regulation, required interference-free transmission.

Reference Standards

  • BS 6500
  • BS 50525-2-11
  • BS EN 60228
  • BS EN 50363-3
  • BS EN 50363-7
  • BS EN 50363-4-1
  • BS EN 50363-8
  • RoHS Directives
  • IEC60332-1

Constructions

  • 1. Conductor: Class 5 Oxygen Free Copper
  • 2. Insulation: PVC/LSZH
  • 3. Identification:
  • Black Cores with White Number
  • 1pc Green/Yellow Core
  • 4. Screened:Tinned Copper Wire Braided
  • 5. Sheath: PVC/LSZH(Grey)
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
Rated Voltage: 300/300V

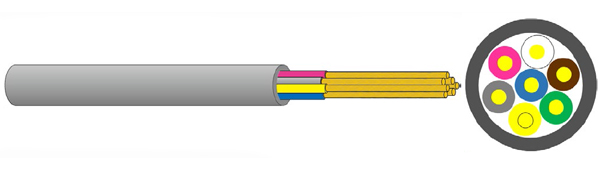

LiYY Cable PVC

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units.

Reference Standards

  • »VDE 0812
  • »DIN 1704
  • »VDE 0207
  • »IEC60332-1
  • »RoHS Directives

Constructions

  • Class 5 Oxygen Free Copper (Class 1)
  • 2. Insulation: PVC
  • 3. Identification: Colored
  • 6. Sheath: PVC
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC


Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm² 250/250V 1200V 200
0.5~0.75mm² 300V 2000V 200
1.0~1.5mm² 300/500V 3000Ve 200

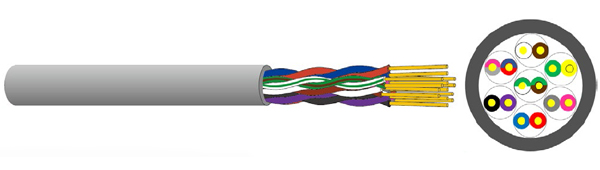

LiYY TP Cable PVC


Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units.

Reference Standards

  • »VDE 0812
  • »DIN 1704
  • » VDE 0207
  • » RoHS Directive
  • » EC60332-1

Constructions

  • 1.Conductor: Class 5 Oxygen Free Copper
  • 2. Insulation: PVC
  • 3.Identification: Colored
  • 4.Cabling:Twisted
  • 6. Sheath: PVC


>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC




Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm² 250/250V 1200V 200
0.5~0.75mm² 300V 2000V 200
1.0~1.5mm² 300/500V 3000Ve 200

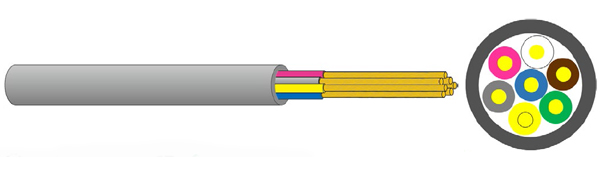

LiHH Cable LSZH

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units with low smoke zero halogen and flame retardant requirement.

Reference Standards

  • »VDE 0812
  • »DIN 1704
  • »VDE 0207
  • »RoHS Directives
  • »IEC60332-1
  • »IEC60754

Constructions

  • 1.Conductor: Class 5 Oxygen Free Copper
  • 2. Insulation: PE
  • 3. Identification: Colored
  • 4. Sheath: LSZH
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC



Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm² 250/250V 1200V 200
0.5~0.75mm² 300V 2000V 200
1.0~1.5mm² 300/500V 3000V 200

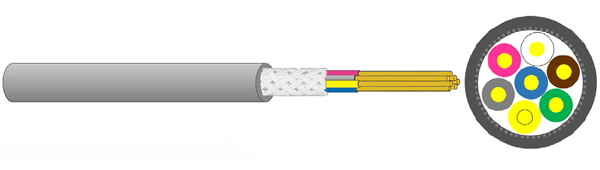

LiYcY Cable PVC


Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units, which requires protection from electromagnetic interference (EMI) and electromagnetic radiation (EMR).

Reference Standards

  • »VDE 0812
  • »DIN 1704
  • »VDE 0207
  • »RoHS Directives
  • »IEC60332-1

Constructions

  • 1.Conductor: Class 5 Oxygen Free Copper
  • 2. Insulation: PVC
  • 3. Identification: Colored
  • 4. Screen: Tinned Copper Wire Braided
  • 5. Sheath: PVC
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC



Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm² 250/250V 1200V 200
0.5~0.75mm² 300V 2000V 200
1.0~1.5mm² 300/500V 3000V 200

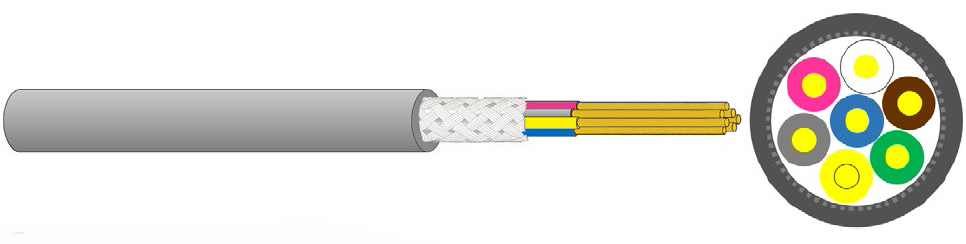

LiHcH Cable LSZH


Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units, which requires protection from electromagnetic interference (EMI) and electromagnetic radiation (EMR) with low smoke zero halogen and flame retardant requirement.

Reference Standards


  • »VDE 0812
  • »VDE 0207
  • »DIN 1704
  • »RoHS Directive
  • »IEC60332-1
  • »IEC60754

Constructions



  • 1. Conductor: Class 5 Oxygen Free Copper
  • 2. Insulation: PE
  • 3.Identification: White, Black
  • 4.Bedding: PVC
  • 5. Screened: Colored
  • 6. Sheath: LSZH
>> Insulation cores are in blue and white color with number printed.
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm² 250/250V 1200V 200
0.5~0.75mm² 300V 2000V 200
1.0~1.5mm² 300/500V 3000V 200

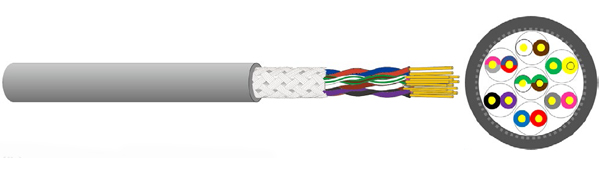

LiYcY TP Cable PVC


Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units, which requires protection from electromagnetic interference (EMI) and electromagnetic radiation (EMR).

Reference Standards

  • »VDE 0812
  • »DIN 1704
  • »VDE 0207
  • »RoHS Directives
  • »IEC60332-1

Constructions

  • 1.Conductor: Class 5 Oxygen Free Copper
  • 2. Insulation: PVC
  • 3. Identification: Colored
  • 4. Cabling: Twisted Pair
  • 5. Screen: Tinned Copper Wire Braided
  • 6. Sheath: PVC
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC



Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm² 250/250V 1200V 200
0.5~0.75mm² 300V 2000V 200
1.0~1.5mm² 300/500V 3000V 200

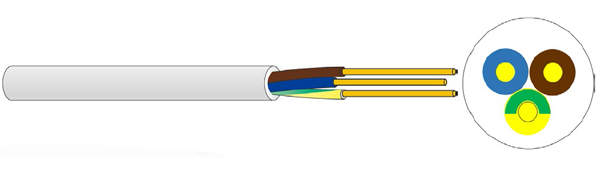

218Y/B, 2192Y/B


Application

For use on small appliances with low mechanical stress and for connection for light household appliances.

Reference Standards

  • »BS 6500
  • »BS EN 50525-2-11
  • »BS EN 60228
  • »BS EN 50363
  • »RoHS Directives
  • »IEC60332-1

Constructions

  • 1.Conductor:Class 5 Oxygen Free Copper
  • 2. Insulation: PVC,LSZH
  • 3. Identification:
  • 2 Cores: Blue & Brown
  • 3 Core: Green/Yellow, Blue & Brown
  • 4 Core: Green/Yellow, Brown, Black & Grey
  • 5 Core: Green/Yellow, Blue & Brown & Black
  • 4. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/300V
»Test Voltage: 2000V


Part No. Conductor Insulation Thickness (mm) Cable Diameter (mm) Max. Resistance at 20°C (Ω/km) Min. Insulation DCR at 70°C (MΩ/km)
mm² No./mm Lower Limit Upper Limit
H03VVh4-F / 2192Y (H03Z1Z1h4-F / 2192B)
H03VVh4-F 2x0.5 0.5 16/0.20 0.5 3.0x4.9 3.7x5.9 39.0 0.011
H03VVh4-F 2x0.75 0.75 24/0.20 0.5 3.2x5.2 3.8x6.3 26.0 0.010
H03VV-F / 2182Y (H03Z1Z1-F / 2182B)
H03VV-F 2x0.5 0.50 16/0.20 0.5 4.6 5.9 39.0 0.011
H03VV-F 2x0.75 0.75 24/0.20 0.5 4.9 6.3 26.0 0.010
H03VV-F / 2183Y (H03Z1Z1-F / 2183B)
H03VV-F 3x0.5 0.5 16/0.20 0.5 4.9 6.3 39.0 0.011
H03VV-F 3x0.75 0.8 24/0.20 0.5 5.2 6.7 26.0 0.010
H03VV-F / 2184Y (H03Z1Z1-F / 2184B)
H03VV-F 4x0.5 0.5 16/0.20 0.5 5.4 6.9 39.00 0.011
H03VV-F 4x0.75 0.75 24/0.20 0.5 5.7 7.3 26.0 0.010

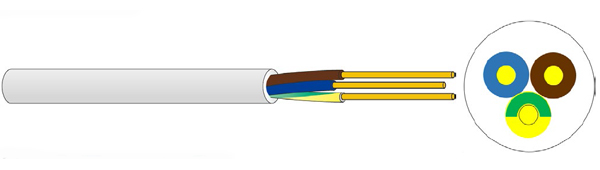

318Y/B, 3192Y/B


Application

For use on small appliances with low mechanical stress and for connection for light household appliances.

Reference Standards

  • »BS 6500
  • »BS EN 50525-2-11
  • »BS EN 60228
  • »BS EN 50363
  • »RoHS Directives
  • »IEC60332-1

Constructions

  • 1.Conductor:Class 5 Oxygen Free Copper
  • 2. Insulation: PVC,LSZH
  • 3. Identification:
  • 2 Cores: Blue & Brown
  • 3 Core: Green/Yellow, Blue & Brown
  • 4 Core: Green/Yellow, Brown, Black & Grey
  • 5 Core: Green/Yellow, Brown, Black Grey & Blue
  • 6. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/300V
»Test Voltage: 2000V




Part No. Conductor Insulation Thickness (mm) Sheath Thickness (mm) Cable Diameter (mm) Max. Resistance at 20°C (Ω/km) Min. Insulation DCR at 70°C (MΩ/km)
mm² No./mm Lower Limit Upper Limit
H05VVh4-F / 3192Y (H05Z1Z1-h4-F / 3192B)
H05VVh4-F 2x0.75 0.75 24/0.20 0.6 0.8 3.7x6.0 4.5x7.2 26.0 0.011
H05VVh4-F 2x1.0 1.0 32/0.20 0.6 0.8 3.9x6.2 4.7x7.5 19.5 0.010
H05VVh4-F 2x1.5 1.5 30/0.25 0.7 0.8 4.2x7.0 5.2x8.6 13.3 0.010
H05VV-F / 3182Y (H05Z1Z1-F / 3182B)
H05VV-F 2x0.75 0.75 24/0.20 0.6 0.8 5.7 7.2 26.0 0.011
H05VV-F 2x1.0 1.0 32/0.20 0.6 0.8 5.9 7.5 19.5 0.010
H05VV-F 2x1.5 1.5 30/0.25 0.7 0.8 6.8 8.6 13.3 0.010
H05VV-F 2x2.5 2.5 49/0.25 0.8 1.0 8.4 10.6 7.98 0.009
H05VV-F 2x4.0 4.0 81/0.25 0.8 1.1 9.7 12.1 4.95 0.008
H05VW-F / 3183Y (H05Z1Z1-F / 3183B)
H05VV-F 3x0.75 0.75 24/0.20 0.6 0.8 6.0 7.6 26.0 0.011
H05VV-F 3x1.0 1.0 32/0.20 0.6 0.8 6.3 8.0 19.5 0.010
H05VV-F 3x1.5 1.5 30/0.25 0.7 0.9 7.4 9.4 13.3 0.010
H05VV-F 3x2.5 2.5 49/0.25 0.8 1.0 9.2 11.4 7.98 0.009
H05VV-F 3x4.0 4.0 81/0.25 0.8 1.2 10.5 13.1 4.95 0.008
H05VW-F / 3184Y (H05Z1Z1-F / 3184B)
H05VV-F 4x0.75 0.75 24/0.20 0.6 0.8 6.6 8.3 26.0 0.011
H05VV-F 4x1.0 1.0 32/0.20 0.6 0.9 7.1 9.0 19.5 0.010
H05VV-F 4x1.5 1.5 30/0.25 0.7 1.0 8.4 10.5 13.3 0.010
H05VV-F 4x2.5 2.5 49/0.25 0.8 1.1 10.1 12.5 7.98 0.009
H05VV-F 4x4.0 4.0 81/0.25 0.8 1.2 11.5 14.3 4.95 0.008
H05VW-F / 3185Y (H05Z1Z1-F / 3185B)
H05VV-F 5x0.75 0.75 24/0.20 0.6 0.9 7.4 9.3 26.0 0.011
H05VV-F 5x1.0 1.0 32/0.20 0.6 0.9 7.8 9.8 19.5 0.010
H05VV-F 5x1.5 1.5 30/0.25 0.7 1.1 9.3 11.6 13.3 0.010
H05VV-F 5x2.5 2.5 49/0.25 0.8 1.2 11.2 13.9 7.98 0.009
H05VV-F 5x4.0 4.0 81/0.25 0.8 1.4 13.0 16.1 4.95 0.008

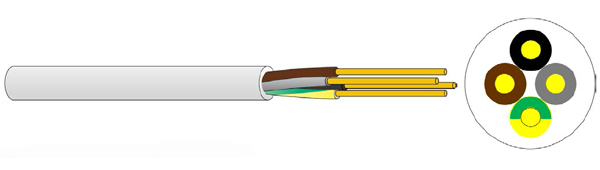

309Y to BS6500


Application

For use on small appliances with low mechanical stress and for connection for light household appliances.

Reference Standards

  • »BS 6500
  • »BS EN 50525-2-11
  • »BS EN 60228
  • »BS EN 50363
  • »RoHS Directives
  • »IEC60332-1

Constructions

  • 1.Conductor:Class 5 Oxygen Free Copper
  • 2. Insulation: PVC,LSZH
  • 3. Identification:
  • 2 Cores: Blue & Brown
  • 3 Core: Green/Yellow, Blue & Brown
  • 4 Core: Green/Yellow, Brown, Black & Grey
  • 5 Core: Green/Yellow, Brown & Black &Grey & Blue
  • 6. Sheath: PVC
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/300V
»Test Voltage: 2000V


Part No. Conductor Insulation Thickness (mm) Sheath Thickness (mm) Cable Diameter (mm) Max. Resistance at 20°C (Ω/km) Min. Insulation DCR at 70°C (MΩ/km)
mm ² No./mm Lower Limit Upper Limit
H05V2V2-F / 3092Y
H05V2V2-F 2x0.75 0.75 24/0.20 0.6 0.8 5.7 7.2 26.0 0.011
H05V2V2-F 2x1.0 1.0 32/0.20 0.6 0.8 5.9 7.5 19.5 0.010
H05V2V2-F 2x1.5 1.5 30/0.25 0.7 0.8 6.8 8.6 13.3 0.010
H05V2V2-F 2x2.5 2.5 49/0.25 0.8 1.0 8.4 10.6 7.98 0.009
H05V2V2-F 2x4.0 4.0 81/0.25 0.8 1.1 9.7 12.1 4.95 0.008
H05V2V2-F 2x6.0 6.0 84/0.30 0.8 1.1 10.6 12.6 3.30 0.007
H05V2V2-F / 3093Y
H05V2V2-F 3x0.75 0.75 24/0.20 0.6 0.8 6.0 7.6 26.0 0.011
H05V2V2-F 3x1.0 1.0 32/0.20 0.6 0.8 6.3 8.0 19.5 0.010
H05V2V2-F 3x1.5 1.5 30/0.25 0.7 0.9 7.4 9.4 13.3 0.010
H05V2V2-F 3x2.5 2.5 49/0.25 0.8 1.0 9.2 11.4 7.98 0.009
H05V2V2-F 3x4.0 4.0 81/0.25 0.8 1.2 10.5 13.1 4.95 0.008
H05V2V2-F 3x6.0 6.0 84/0.30 0.8 1.2 12.0 14.0 3.30 0.007
H05V2V2-F / 3094Y
H05V2V2-F 4x0.75 0.75 24/0.20 0.6 0.8 6.6 8.3 26.0 0.011
H05V2V2-F 4x1.0 1.0 32/0.20 0.6 0.9 7.1 9.0 19.5 0.010
H05V2V2-F 4x1.5 1.5 30/0.25 0.7 1.0 8.4 10.5 13.3 0.010
H05V2V2-F 4x2.5 2.5 49/0.25 0.8 1.1 10.1 12.5 7.98 0.009
H05V2V2-F 4x4.0 4.0 81/0.25 0.8 1.2 11.5 14.3 4.95 0.008
H05V2V2-F 4x6.0 6.0 84/0.30 0.8 1.2 13.0 15.0 3.30 0.007
H05V2V2-F / 3095Y
H05V2V2-F 5x0.75 0.75 24/0.20 0.6 0.9 7.4 9.3 26.0 0.011
H05V2V2-F 5x1.0 1.0 32/0.20 0.6 0.9 7.8 9.8 19.5 0.010
H05V2V2-F 5x1.5 1.5 30/0.25 0.7 1.1 9.3 11.6 13.3 0.010
H05V2V2-F 5x2.5 2.5 49/0.25 0.8 1.2 11.2 13.9 7.98 0.009
H05V2V2-F 5x4.0 4.0 81/0.25 0.8 1.4 13.0 16.1 4.95 0.008
H05V2V2-F 5x6.0 6.0 84/0.30 0.8 1.4 14.5 17.0 3.30 0.007


Single Core Non-sheathed Cable to EN50525-2-31,


PreviousPage Next    Page

Contact Us Now ∨

0 person contacting us now




Contact Information

Company Name:CHINA LUBAO CABLE GROUP CO.,LTD.

Telephone:0086-13865965950

Fax:0086-551-64266536

Email:sales@lubaocables.com

Address:Wenzhong Road,Yaohai Indrustrial Park,Hefei City,China
