Application

Process control, equipment interconnection, typically in chemical and petrochemical locations. The unarmoured cables are generally use for indoor installation and suitable for wet and damp areas.

Reference Standards

• »»PAS/BS 5308
• »»BS EN 60228
• »»BS EN 50290-2-23
• »»RoHS Directives
• »»BS EN 50290-2-22

Constructions

• 1.Conductor: Class 1 / 2 / 5 Oxygen Free Copper
• 2.Insulation: Polyethylene (PE)
• 3.Cabling: Twisted Pairs
• 4.Screened: Al-PET tape with Tinned Copper Drain Wire for
• Individually Screened (Where Applicable)
• Collectively Screened
• Bedding for armoured cable:
• Polyethylene (PE)
• PVC
• 6.Armour (Where Applicable): Galvanized Steel Wire
• 7.Oversheath: PVC

General Characteristics

Conductor Size (mm)	Conductor Class	Max.DCR(Ω/km)	Max. Mutual Capacitance Values (pF/m)		Max. Capacitance Unbalance at 1kHz (pF/250m)	Max.L/R Ratio (uH/km)
			Cables with Collective Screens (except 1 pair & 2 pairs)	1Pair & 2Pairs Cable Collectively Screened & All Cables with Individual Pair Screens
0.5	0.5	1	75	115	250	25
1.0	1.0	1	75	115	250	25
0.5	0.5	5	75	115	250	25
1.5	1.5	2	85	120	250	40

Identification of Cable Pairs

Pair No.	Colour		Pair No.	Colour
1	Black	Blue	11	Black	Red
2	Black	Green	12	Blue	Red
3	Blue	Green	13	Green	Red
4	Black	Brown	14	Brown	Red
5	Blue	Brown	15	White	Red
6	Green	Brown	16	Black	Orange
7	Black	White	17	Blue	Orange
8	Blue	White	18	Green	Orange
9	Green	White	19	Brown	Orange
10	Brown	White	20	White	Orange

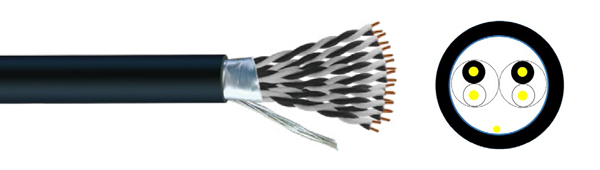

PAS/S55308 Part 1 Type 1: Collectively Screened Unarmoured

Conductor	No. of Pairs	Size (mm)	Class	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)
1	0.5	1		0.5	0.8	5.3
2	0.5	1		0.5	0.8	6.1
5	0.5	1		0.5	1.1	10.6
10	0.5	1		0.5	1.2	14.0
15	0.5	1		0.5	1.2	16.1
20	0.5	1		0.5	1.3	18.4
1	1	1		0.6	0.8	6.4
2	1	1		0.6	0.8	7.4
5	1	1		0.6	1.1	12.1
10	0.5	5		0.6	1.2	16.2
15	0.5	5		0.6	1.3	18.8
20	0.5	5		0.6	1.3	21.3
1	1.5	2		0.6	0.8	7.3
2	1.5	2		0.6	0.9	8.7
5	1.5	2		0.6	1.2	15.4
10	1.5	2		0.6	1.3	20.6
15	1.5	2		0.6	1.5	24.2
20	1.5	2		0.6	1.5	27.5

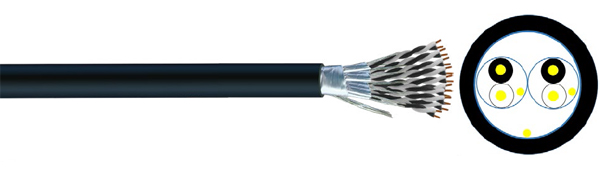

PAS/S55308 Part 1 Type 1:
Individually & Collectively Screened Unarmoured

Conductor	No. of Pairs	Size (mm)	Class	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)
2	0.5	1		0.5	0.9	8.5
5	0.5	1		0.5	0.8	10.9
10	0.5	1		0.5	1.1	15.6
15	0.5	1		0.5	1.2	18.1
20	0.5	1		0.5	1.3	20.4
2	1	1		0.6	0.9	10.3
5	1	1		0.6	1.0	13.5
10	1	1		0.6	1.2	19.4
15	1	1		0.6	1.4	22.7
20	1	1		0.6	1.5	25.7
2	0.5	5		0.6	0.9	9.7
5	0.5	5		0.6	1.0	12.6
10	0.5	5		0.6	1.2	18.0
15	0.5	5		0.6	1.3	20.9
20	0.5	5		0.6	1.4	23.6
2	1.5	2		0.6	1.0	12.1
5	1.5	2		0.6	1.1	15.8
10	1.5	2		0.6	1.4	22.9
15	1.5	2		0.6	1.5	26.6
20	1.5	2		0.6	1.6	30.1

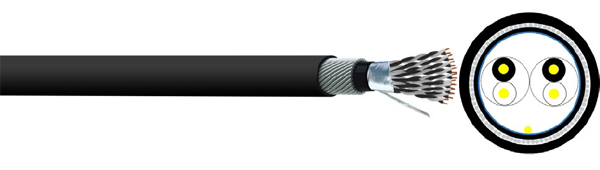

PAS/S55308 Part 1 Type 2:
Collectively Screened Armoured

Conductor	No. of Pairs	Size (mm)	Class	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)
2	0.5	1		0.5	1.4	13.1
5	0.5	1		0.5	1.5	15.7
10	0.5	1		0.5	1.6	21.3
15	0.5	1		0.5	1.7	24.7
20	0.5	1		0.5	1.8	27.2
2	1	1		0.6	1.4	14.9
5	1	1		0.6	1.5	19.0
10	1	1		0.6	1.7	26.0
15	1	1		0.6	1.8	29.5
20	1	1		0.6	1.9	32.7
2	0.5	5		0.6	1.4	14.3
5	0.5	5		0.6	1.6	16.1
10	0.5	5		0.6	1.7	24.6
15	0.5	5		0.6	1.8	29.5
20	1	1		0.6	1.9	32.7
2	1.5	2		0.6	2.1	38.3

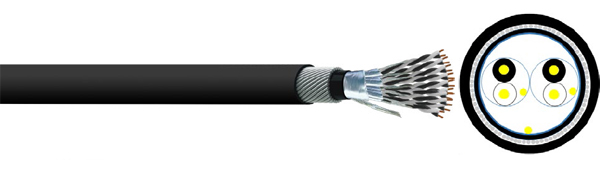

PAS/S55308 Part 1 Type 2:
Individual &Collectively Screened Armoured

PAS/S55308 Part 1 Type 2: Individual &Collectively Screened Armoured

PAS/BS5308 Part 2 Type 1: Collectively Screened Unarmoured

PAS/BS5308 Part 2 Type 1: Individually & Collectively Screened Unarmoured

PAS/BS5308 Part 2 Type 2: Collectively Screened Armoured

PAS/BS5308 Part 2 Type 2: Individually & Collectively Screened Armoured

PAS/BS5308 Part 2 Type 1: Multicore Collectively Screened Unarmoured

PAS/BS5308 Part 2 Type 2: Multicore Collectively Screened Armoured

BS EN50288-7
