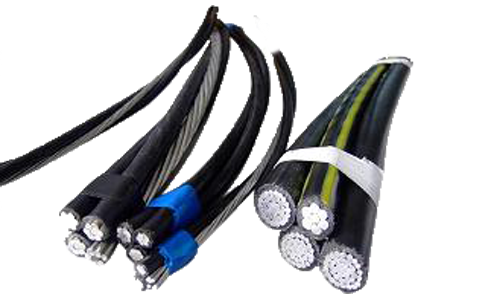

1KV Aerial Insulated Cable

Index>Aerial Insulated Cable >1KV Aerial Insulated Cable

Type and Description

Type	Description	Application


JKV JKLV	Copper(aluminum)conductor,PVC insulated aerial cable	Applying in cable fixed aerial laying or used as wire leading into user's premises

JKY JKLY	Copper(aluminum)conductor,PE insulated aerial cable

JKYJ JKLYJ	Copper(aluminum)conductor,XLPE insulated aerial cable

JKLHV	Aluminum alloy conductor,PVC insulated aerial cable
JKLHY	Aluminum alloy conductor,PE insulated aerial cable
JKLHYJ	Aluminum alloy conductor,XLPE insulated aerial cable
JKLGV	ACSR conductor,PVC insulated aerial cable
JKLGY	ACSR conductor, PE insulated aerial cable
JKLGYJ	ACSR conductor, XLPE insulated aerial cable

Standard of product

The cables are designed for aerial power lines and room-entrance wires with Uo/U up to and including 0.6/1kV

The product is manufactured according to the standard of GB/T12527-2008. At the same time ,it can also be manufactured according to IEC,BS,DIN and AEIC upon request.

Operating Characterastics

Rated Voltage:1kv

Max permissable continuous operating temperature of conductor

PVC insulated aerial cable: 70℃

PE insulated aerial cable: 75℃

XLPE insulated aerial cable:90℃

Max temperature of the conductor during short-circuit (5s maximum duration) shall not exceed :

PVC insulated aerial cable: 160℃

PE insulated aerial cable: 130℃

XLPE insulated aerial cable: 250℃

The ambient temperature under installation should not be lower than -20℃

The bending radius of cable are recommended as follow:

When the diameter of cable is less than 25㎜:not less than 4 times of the cable’s OD

When the diameter of cable is more than and including 25mm: not less than 6 times of the cable’s OD

When the cable are used in the alternative current systerm,rated voltage of cables should be at least equal to the rated voltage of the system;when the cables are used in direct current system, rated voltage should not exceed than 1.5 times of the rated voltage of the cables

Correction factor of current rating under different ambient temperature

Material	Rated voltage kv	Conductor temperature ℃	Actual temperature ℃
			10	15	20	25	30	35	40	45	50	55
			Corection factor of current rating for ambient termperature
PVC	1KV	70	1.52	1.44	1.36	1.28	1.19	1.09	1.00	0.89	0.78	0.65
PE		75	1.44	1.37	1.30	1.23	1.16	1.08	1.00	0.91	0.82	0.72
XLPE		90	1.32	1.26	1.21	1.16	1.11	1.05	1.00	0.93	0.89	0.80

Type	No. of core	Cross-section mm²
JKV JKLV JKLHV	1,2,4	16-240mm²
JKY JKLY JKLHY	1,2,4
JKYJ JKYJ JKLHYJ	1,2,4
JKLV JKLY JKLYJ	3+k


* K is the belt load bearing neutral conductor, no matter what elects.

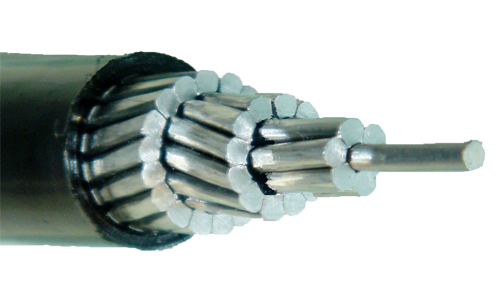

Diagram of Cable Structure
