Type and Description
|
Type
|
Description
|
Application
|
|
JKY
JKLY
|
Copper(aluminum)conductor,PE insulated aerial
cable
|
Applying in cable fixed aerial laying or used as wire
leading into user's premises
|
|
JKYJ
JKLYJ
|
Copper (aluminum)conductor,XLPE insulated
aerial cable
|
|
JKTRY
|
Flexible copper conductor,PE insulated aerial
cable
|
|
JKTRYJ
|
Flexible copper conductor,XLPE insulated aerial
cable
|
|
JKLHY
|
Aluminum alloy conductor,PE insulated aerial
cable
|
|
JKLHYJ
|
Aluminum alloy conductor,XLPE insulated aerial
cable
|
|
JKLGY
|

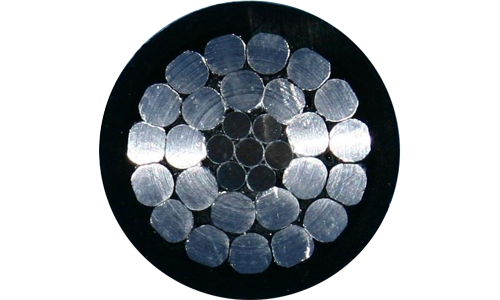

ACSR conductor, PE insulated aerial
cable
|
|
JKLGYJ
|
ACSR conductor, XLPE insulated aerial
cable
|
|
JKLYJ/Q
|
Aluminum conductor ,XLPE insulated aerial light
weight cable
|
|
JKLHYJ/Q
|
Aluminum alloy conductor ,XLPE insulated aerial
light weight cable
|
|
JKLGYJ/Q
|
ACSR conductor ,XLPE insulated aerial light
weight cable
|
|
JKLY/Q
|
Aluminum conductor ,PE insulated aerial light weight
cable
|
|
JKLHY/Q
|
Aluminum alloy conductor ,PE insulated aerial
light weight cable
|
|
JKLGY/Q
|
ACSR conductor ,PE insulated aerial light weight
cable
|
Standard of
product
The product is manufactured according to the standard of
GB/T14049
《Aerial insulated cables with rated voltage of 10KV ,At the same
time ,it can also be manufactured according to the IEC,BS ,DIN and AEIC upon
request.
Operating Characterastics
Rated voltage :10KV
Max permissable continuous operating temperature of
conductor:
PE insulated aerial cable:
75℃
XLPE insulated aerial
cable:90℃
Max temperature of the conductor
during short-circuit (5s maximum duration)shall not exceed :
PE insulated aerial cable: 130℃
XLPE insulated aerial
cable: 250℃
The ambient temperature under
installation should not be lower than -20℃
The bending radius of
cable are recommended as follow:
Single cable：not less than 20 times of the
cable’s OD
Multi-core cable: not less than 15 times of the cable’s
OD
